SD-504

W × H1.400 × 0.650 in MaterialRubber

Bulb Seals

Request a quote for SD-504 → Spec sheet (PDF) Print spec sheet

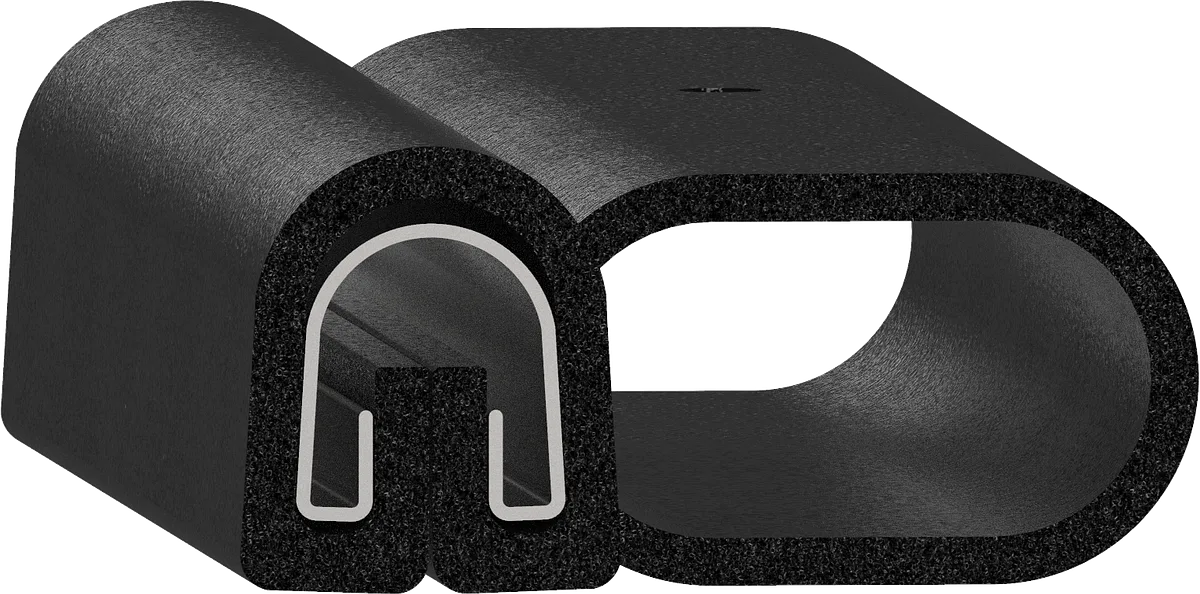

Cross-section drawing of SD-504 — Cross-section — SD-504Not to scale

Specification

As drawn.

Specification for SD-504
Width	1.400" 35.6 mm
Height	0.650" 16.5 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A2 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Side
Core	SD-487 Spring Steel
Industries	Agriculture Equipment and Heavy Trucks
Shape	Bulb Seal

Coil lengths: 50 ft · 250 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

9 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-503 1.200 × 0.650 in · Rubber SD-504-500L 1.465 × 0.775 in · Rubber SD-504-N 1.475 × 0.650 in · Rubber SD-504-W 1.400 × 0.650 in · Rubber SD-505 1.650 × 0.673 in · Rubber SD-506 1.860 × 0.650 in · Rubber SD-510 1.132 × 0.625 in · Rubber SD-510-Spradling 1.135 × 0.650 in · Rubber SD-515 4.400 × 0.650 in · Rubber
