SD-515

W × H4.400 × 0.650 in MaterialRubber

Bulb Seals

Request a quote for SD-515 → Spec sheet (PDF) Print spec sheet

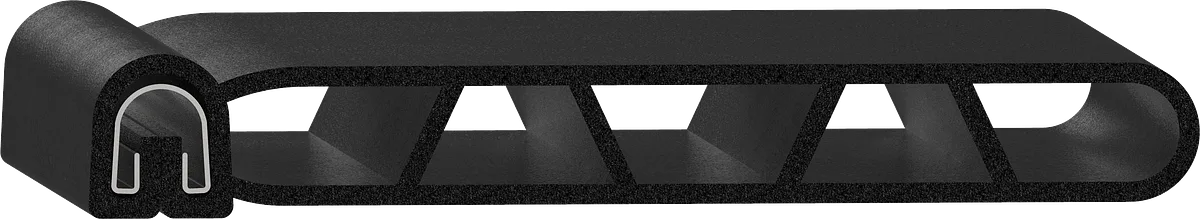

Cross-section drawing of SD-515 — Cross-section — SD-515Not to scale

Specification

As drawn.

Specification for SD-515
Width	4.400" 111.8 mm
Height	0.650" 16.5 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Side
Core	SD-487 Spring Steel
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

11 interchangeable parts

Substitutes from the catalogue.
