SD-509-Flap copy

SD-509 Flap

W × H3.125 × 1.170 in MaterialRubber

Bulb Seals

Request a quote for SD-509-Flap → Spec sheet (PDF) Print spec sheet

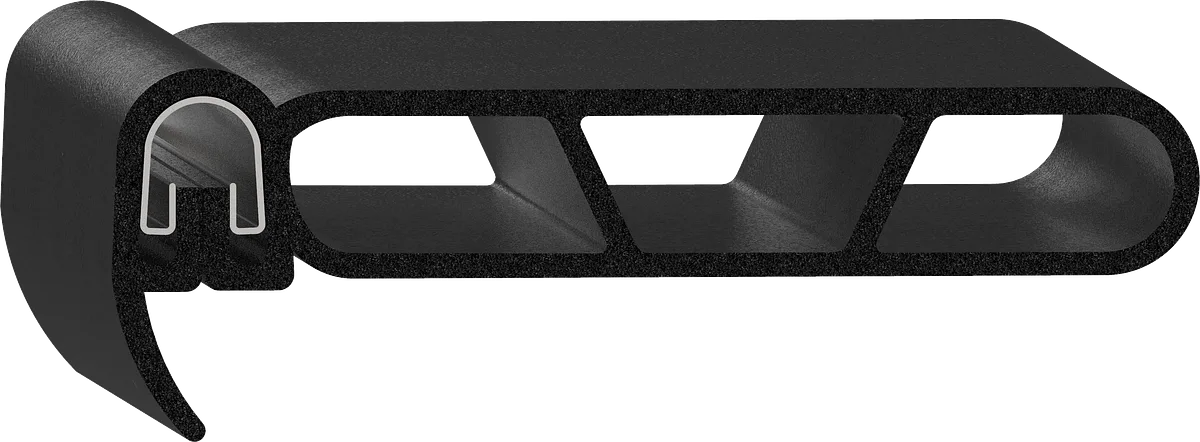

Cross-section drawing of SD-509-Flap — Cross-section — SD-509-FlapNot to scale

Specification

As drawn.

Specification for SD-509-Flap
Width	3.125" 79.4 mm
Height	1.170" 29.7 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Side
Core	SD-487 Spring Steel
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

5 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-507 2.800 × 0.650 in · Rubber SD-508 2.060 × 0.625 in · Rubber SD-509 3.200 × 0.625 in · Rubber SD-509-500L 3.200 × 0.700 in · Rubber SD-515 4.400 × 0.650 in · Rubber

Need it in volume, or to a change?

Tell an engineer the application.

Request a quote →
