Seal catalogue · Push On Rubber Seals · Part

ED-17041-W copy

ED-17041-W

W × H2.400 × 1.800 in MaterialRubber
Push On Rubber Seals Bulb Seals
Request a quote for ED-17041-W → Spec sheet (PDF) Print spec sheet

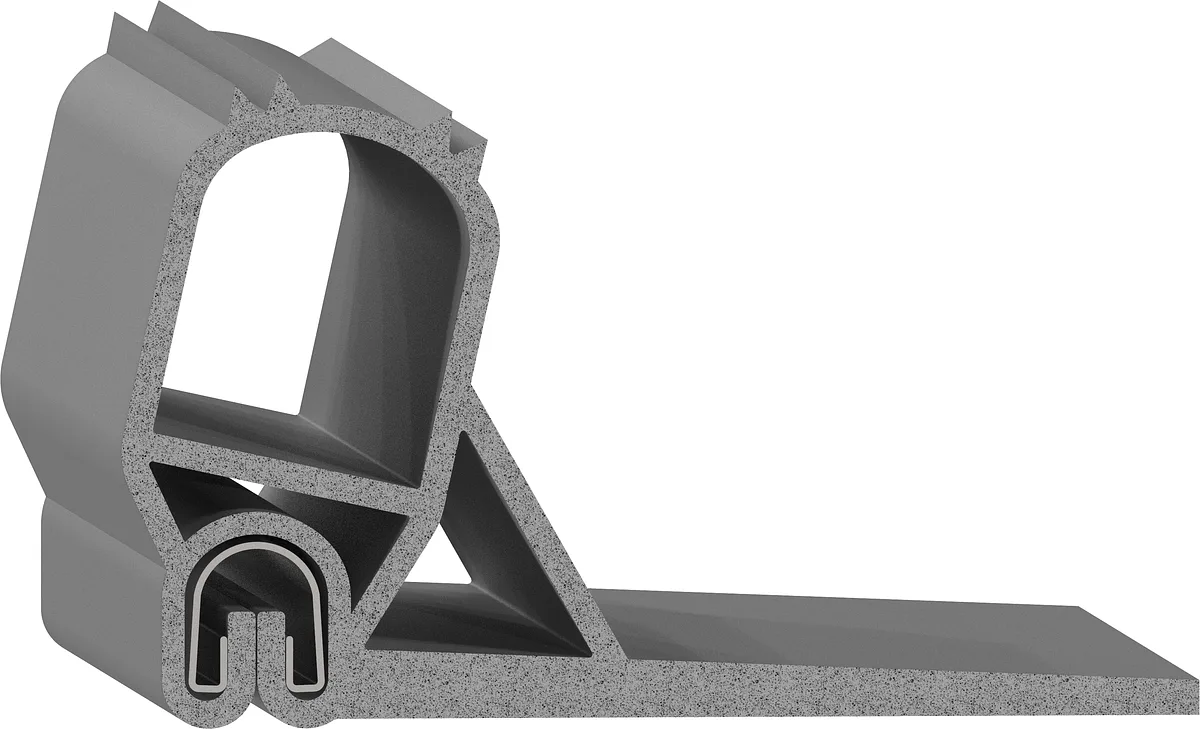

Cross-section drawing of ED-17041-W
Cross-section — ED-17041-WNot to scale
Specification

As drawn.

Specification for ED-17041-W
Width 2.400" 61.0 mm
Height 1.800" 45.7 mm
Flange 0.125" 3.2 mm
Material Rubber
Type Sponge
Durometer 2A5 (sponge grade)
Colour White
Mount Push On
Bulb position Top
Core SD-487 Spring Steel
ShapeBulb Seal and Flap Seal
Flap2.450" 62.2 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
