Seal catalogue · Edge Trims · Part

SD-1188 copy

SD-1188

W × H0.300 × 0.900 in MaterialPVC

Edge Trims

Request a quote for SD-1188 → Spec sheet (PDF) Print spec sheet

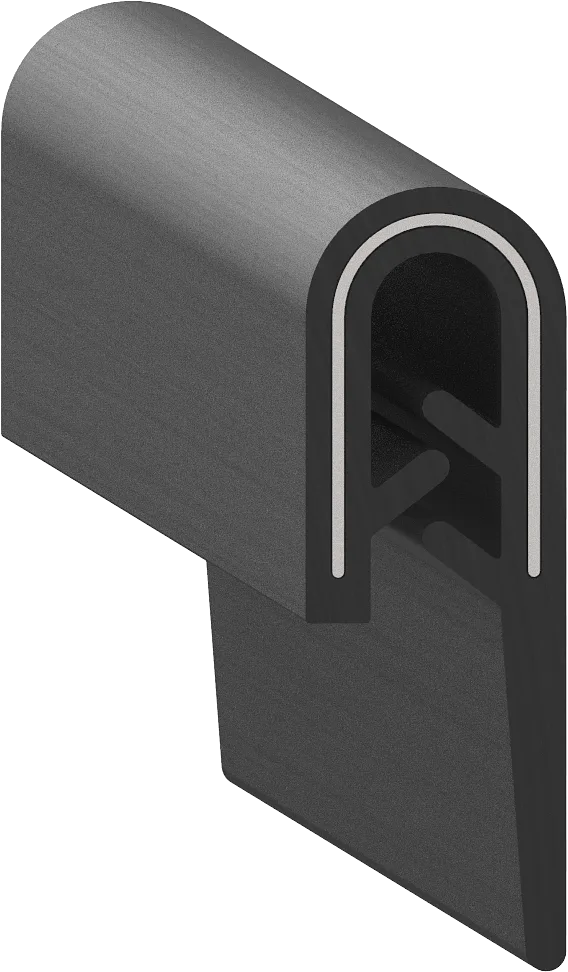

Cross-section drawing of SD-1188 — Cross-section — SD-1188Not to scale

Specification

As drawn.

Specification for SD-1188
Width	0.300" 7.6 mm
Height	0.900" 22.9 mm
Flange	0.150" 3.8 mm
Material	PVC
Durometer	80 Shore A
Colour	Black
Mount	Push On
Core	1in Stamped Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.

Need it in volume, or to a change?

Tell an engineer the application.
