Trim Finder

Find the trim by style, number or size.

Type a part number, a dimension or a material. Narrow the catalogue by style, size and compound — the same fields that appear on each drawing.

18
profiles matching · Download CSV
18 profiles
Cards Table
Sort
Part Width Height Material Mount Style
Silicone Remove filter Reset all
  1. Cross-section drawing of BL-012
    BL-012
    BL-012
    W × H
    0.760 × 0.762 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare
  2. Cross-section drawing of BL-091
    BL-091
    BL-091
    W × H
    1.034 × 0.809 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare
  3. Cross-section drawing of DU-075
    DU-075
    DU-075
    W × H
    0.906 × 0.572 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare
  4. Cross-section drawing of DU-194
    DU-194
    DU-194
    W × H
    0.905 × 0.600 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare
  5. Cross-section drawing of ED-5372-G
    ED-5372-G
    ED-5372-G
    W × H
    0.512 × 0.750 in
    Material
    Silicone
    Style
    Edge Trim
    Quote Compare
  6. Cross-section drawing of RE-023
    RE-023
    RE-023
    W × H
    0.760 × 0.700 in
    Material
    Silicone
    Style
    Other Extrusion
    Quote Compare
  7. Cross-section drawing of RE-027
    RE-027
    RE-027
    W × H
    0.700 × 0.550 in
    Material
    Silicone
    Style
    Other Extrusion
    Quote Compare
  8. Cross-section drawing of SD-10109-G
    SD-10109-G
    SD-10109 G
    W × H
    0.400 × 0.825 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare
  9. Cross-section drawing of SD-106-G
    SD-106-G
    SD-106-G
    W × H
    0.930 × 0.600 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare

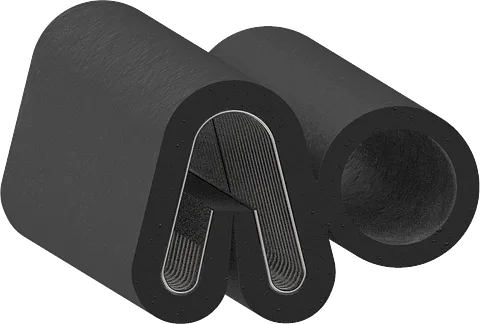

  10. Cross-section drawing of SD-106-GHT
    SD-106-GHT
    SD-106-GHT
    W × H
    0.920 × 0.600 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare
  11. Cross-section drawing of SD-109-G
    SD-109-G
    SD-109-G
    W × H
    1.150 × 0.820 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare
  12. Cross-section drawing of SD-12153-G
    SD-12153-G
    SD-12153-G
    W × H
    0.603 × 0.575 in
    Material
    Silicone
    Style
    Special Compound
    Quote Compare

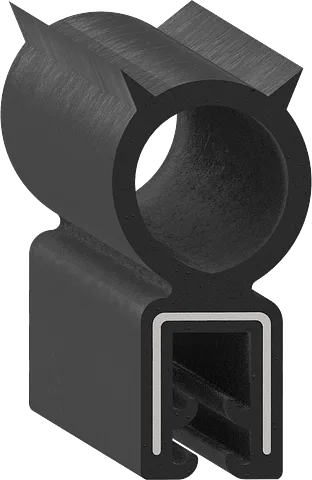

  13. Cross-section drawing of SD-12182-G
    SD-12182-G
    SD-12182-G
    W × H
    0.625 × 1.250 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare

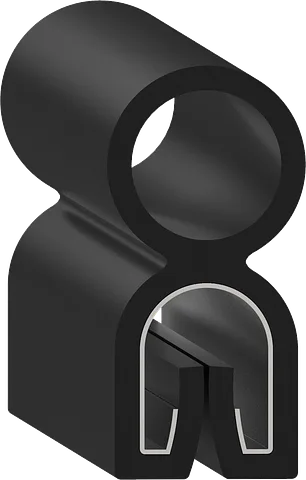

  14. Cross-section drawing of SD-168-G
    SD-168-G
    SD-168-G
    W × H
    0.650 × 1.350 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare

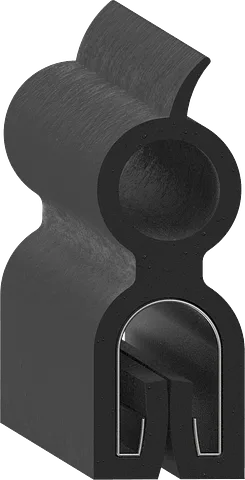

  15. Cross-section drawing of SD-168-G-TIP
    SD-168-G-TIP
    SD-168-G TIP
    W × H
    0.540 × 1.575 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare
  16. Cross-section drawing of SD-170-G
    SD-170-G
    SD-170-G
    W × H
    0.950 × 1.750 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare

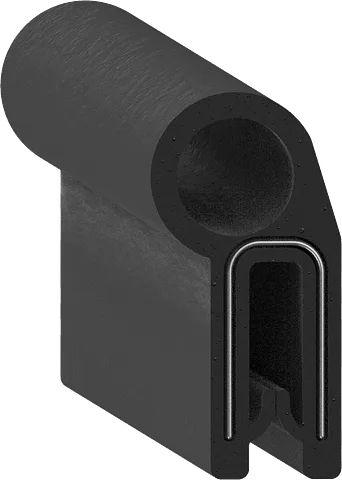

  17. Cross-section drawing of SD-236-G
    SD-236-G
    SD-236-G
    W × H
    0.445 × 0.900 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare
  18. Cross-section drawing of SD-418-G
    SD-418-G
    SD-418 G
    W × H
    2.500 × 0.750 in
    Material
    Silicone
    Style
    Lid Seal
    Quote Compare
