SD-106-G

W × H0.930 × 0.600 in MaterialSilicone

Special Compounds Bulb Seals

Request a quote for SD-106-G → Spec sheet (PDF) Print spec sheet

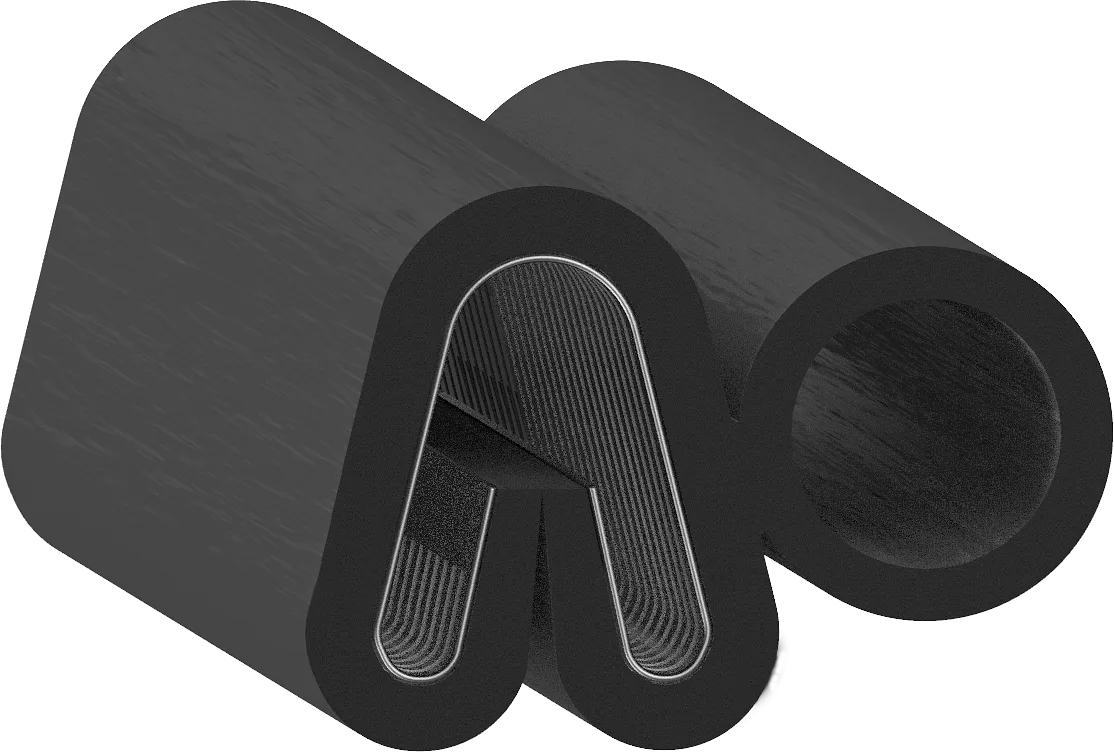

Cross-section drawing of SD-106-G — Cross-section — SD-106-GNot to scale

Specification

As drawn.

Specification for SD-106-G
Width	0.930" 23.6 mm
Height	0.600" 15.2 mm
Flange	0.125" 3.2 mm
Material	Silicone
Durometer	60 Shore A
Colour	Gray
Mount	Push On
Bulb position	Side
Core	SD-487 Spring Steel
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-106 0.970 × 0.648 in · Rubber SD-106-GHT 0.920 × 0.600 in · Silicone
