SD-106

W × H0.970 × 0.648 in MaterialRubber

Bulb Seals

Request a quote for SD-106 → Spec sheet (PDF) Print spec sheet

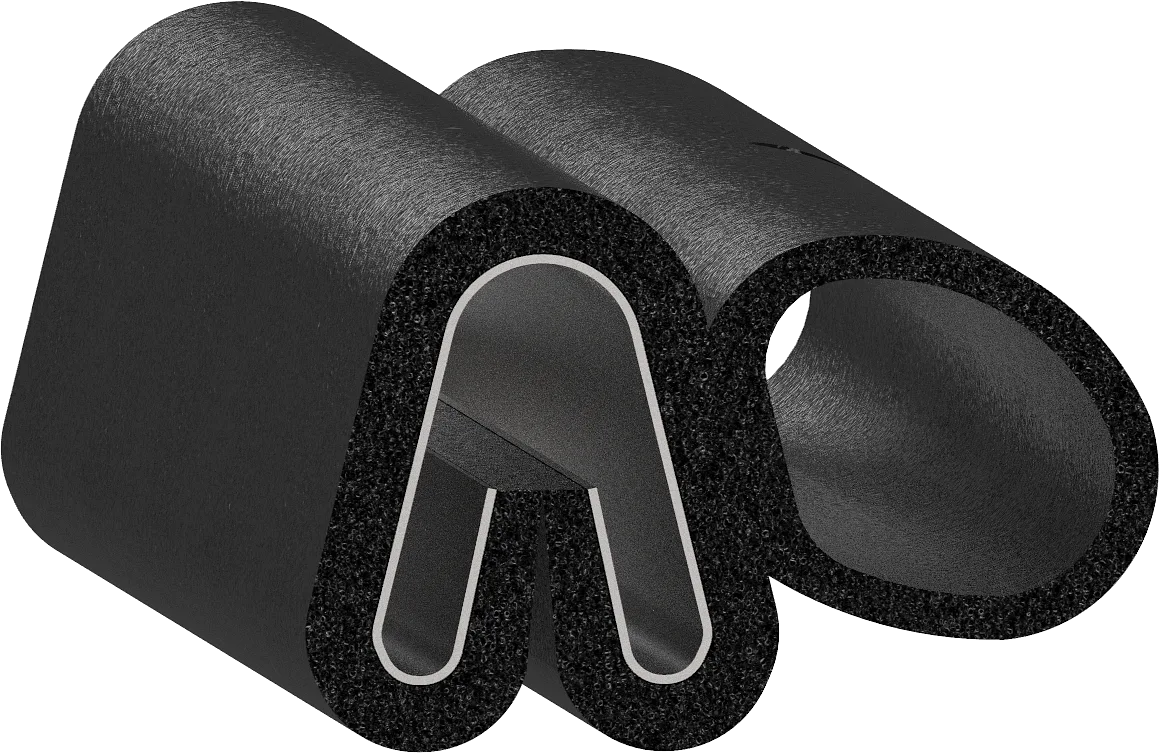

Cross-section drawing of SD-106 — Cross-section — SD-106Not to scale

Specification

As drawn.

Specification for SD-106
Width	0.970" 24.6 mm
Height	0.648" 16.5 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Side
Core	SD-487 Spring Steel
Industries	Emergency Vehicles and Metal and Fiberglass Fabrication
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

7 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-106-G 0.930 × 0.600 in · Silicone SD-106-GHT 0.920 × 0.600 in · Silicone SD-109 1.120 × 0.890 in · Rubber SD-109MM 1.150 × 0.820 in · Rubber SD-600 1.574 × 1.200 in · Rubber SD-602 0.890 × 1.045 in · Rubber SD-706 1.050 × 0.850 in · Rubber
