SD-168-G TIP

W × H0.540 × 1.575 in MaterialSilicone

Special Compounds Bulb Seals

Request a quote for SD-168-G-TIP → Spec sheet (PDF) Print spec sheet

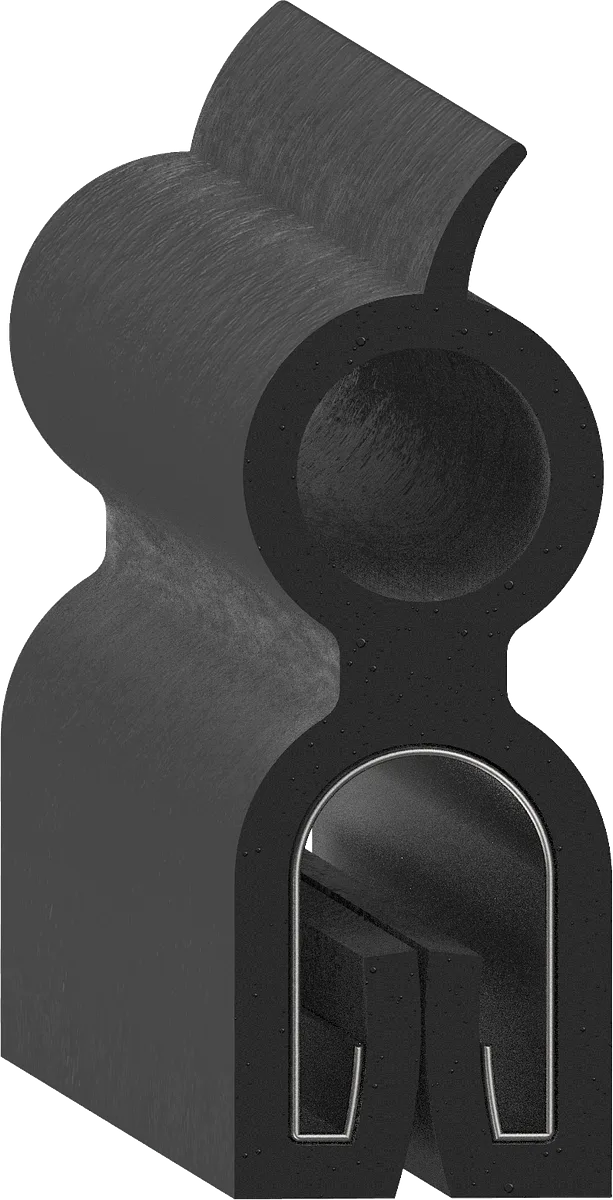

Cross-section drawing of SD-168-G-TIP — Cross-section — SD-168-G-TIPNot to scale

Specification

As drawn.

Specification for SD-168-G-TIP
Width	0.540" 13.7 mm
Height	1.575" 40.0 mm
Flange	0.250" 6.4 mm
Material	Silicone
Durometer	60 Shore A
Colour	Black
Mount	Push On
Bulb position	Top
Core	SD-500L Spring Steel
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

4 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-161 0.600 × 1.000 in · Rubber SD-168 0.650 × 1.250 in · Rubber SD-168-500L 0.780 × 1.500 in · Rubber SD-168-G 0.650 × 1.350 in · Silicone
