Seal catalogue · Bulb Seals · Part

SD-168 copy

SD-168

W × H0.650 × 1.250 in MaterialRubber

Bulb Seals

Request a quote for SD-168 → Spec sheet (PDF) Print spec sheet

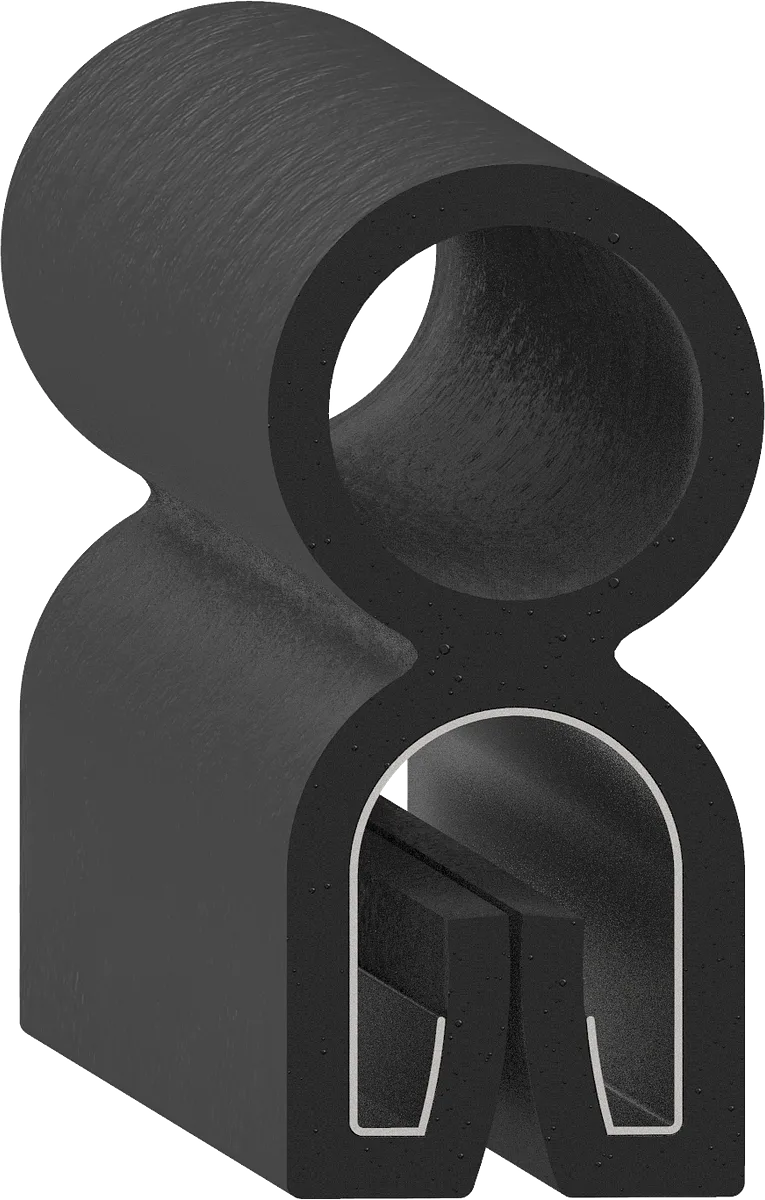

Cross-section drawing of SD-168 — Cross-section — SD-168Not to scale

Specification

As drawn.

Specification for SD-168
Width	0.650" 16.5 mm
Height	1.250" 31.8 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Top
Core	SD-487 Spring Steel
Industries	Metal and Fiberglass Fabrication, Transportation, Construction Equipment, and Utility Vehicles
Shape	Bulb Seal

Coil lengths: 50 ft · 250 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

5 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-5369 0.450 × 0.950 in · Rubber SD-161 0.600 × 1.000 in · Rubber SD-168-500L 0.780 × 1.500 in · Rubber SD-168-G 0.650 × 1.350 in · Silicone SD-168-G-TIP 0.540 × 1.575 in · Silicone
