SD-168-G

W × H0.650 × 1.350 in MaterialSilicone

Special Compounds Bulb Seals

Request a quote for SD-168-G → Spec sheet (PDF) Print spec sheet

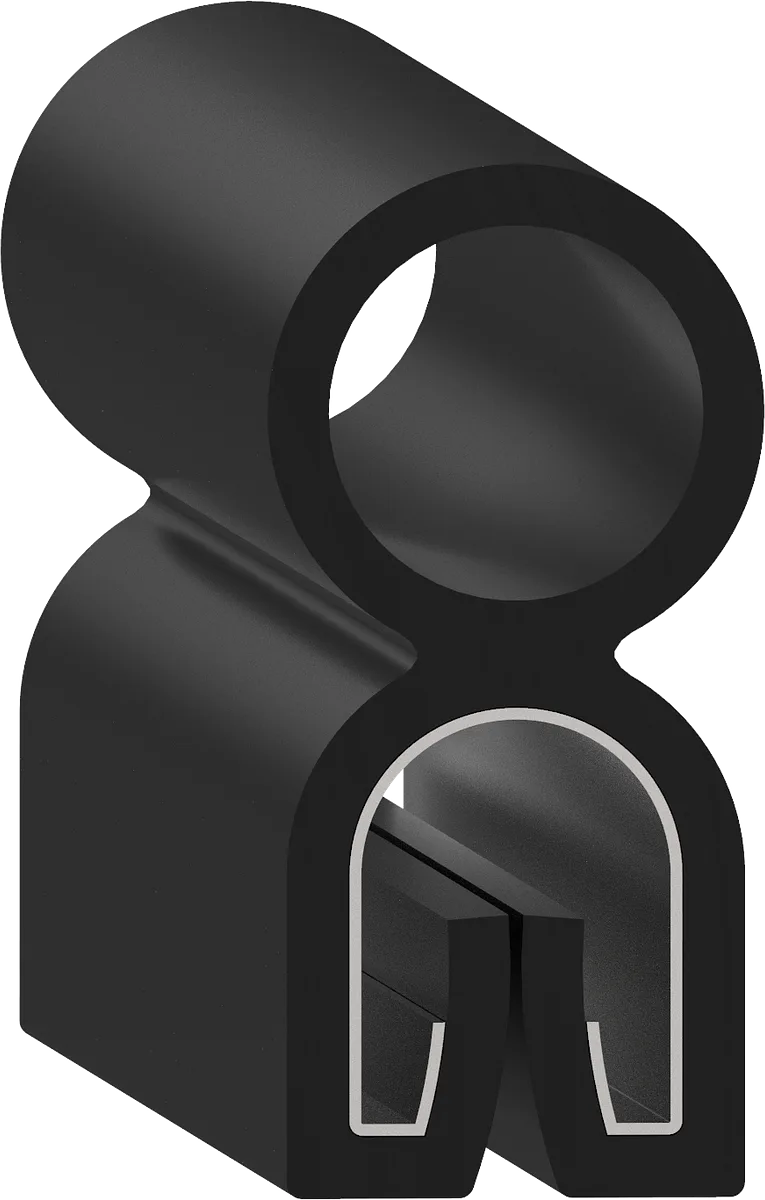

Cross-section drawing of SD-168-G — Cross-section — SD-168-GNot to scale

Specification

As drawn.

Specification for SD-168-G
Width	0.650" 16.5 mm
Height	1.350" 34.3 mm
Flange	0.250" 6.4 mm
Material	Silicone
Durometer	60 Shore A
Colour	Black
Mount	Push On
Bulb position	Top
Core	SD-500L Spring Steel
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-168 0.650 × 1.250 in · Rubber SD-168-500L 0.780 × 1.500 in · Rubber SD-168-G-TIP 0.540 × 1.575 in · Silicone
