SD-10109 G

W × H0.400 × 0.825 in MaterialSilicone

Special Compounds Bulb Seals

Request a quote for SD-10109-G → Spec sheet (PDF) Print spec sheet

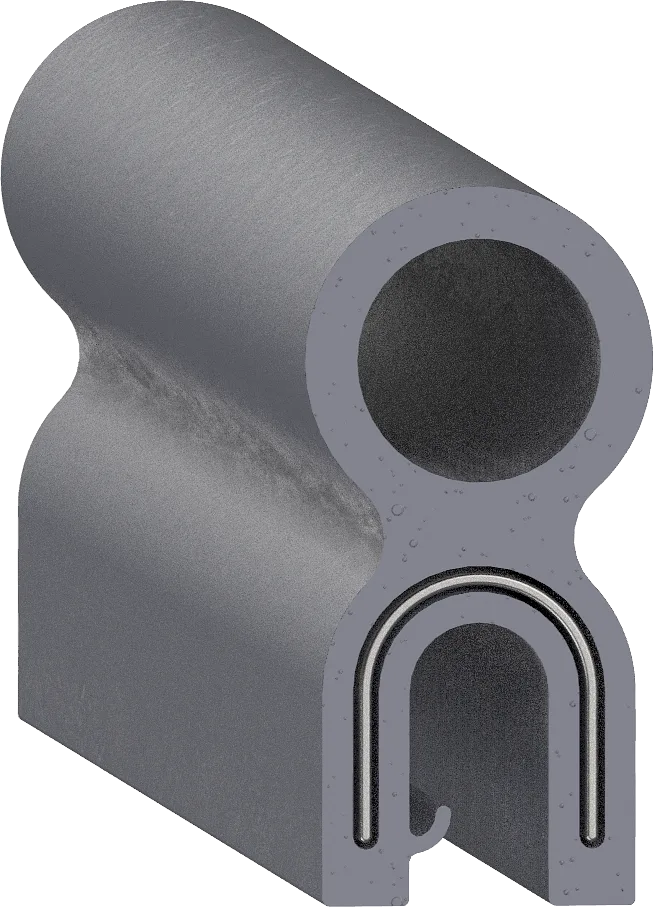

Cross-section drawing of SD-10109-G — Cross-section — SD-10109-GNot to scale

Specification

As drawn.

Specification for SD-10109-G
Width	0.400" 10.2 mm
Height	0.825" 21.0 mm
Flange	0.160" 4.1 mm
Material	Silicone
Durometer	60 Shore A
Colour	Gray
Mount	Push On
Bulb position	Top
Core	.75in Wire
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

1 interchangeable part

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-10108 0.400 × 0.825 in · Rubber
