SD-12153-G

W × H0.603 × 0.575 in MaterialSilicone

Special Compounds Bulb Seals

Request a quote for SD-12153-G → Spec sheet (PDF) Print spec sheet

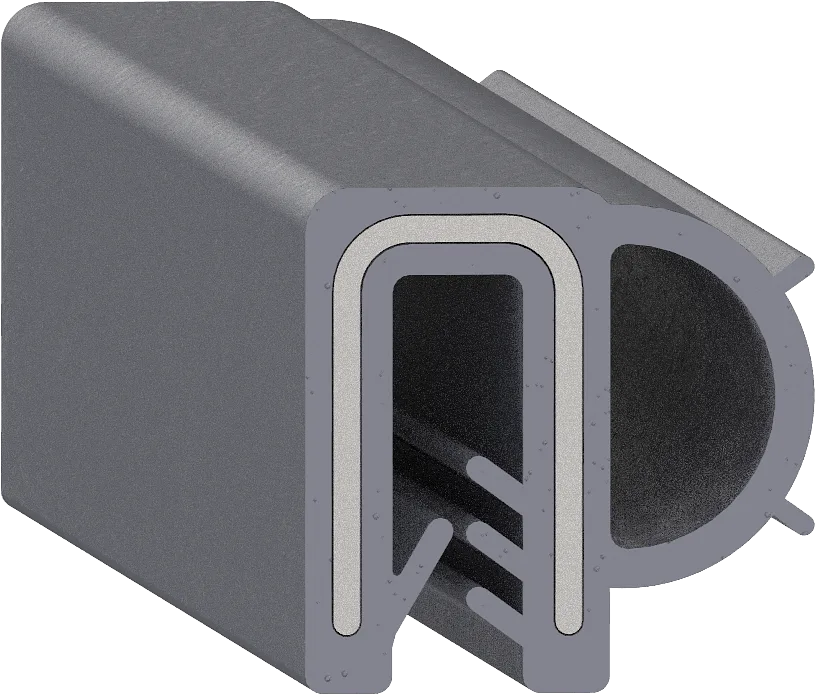

Cross-section drawing of SD-12153-G — Cross-section — SD-12153-GNot to scale

Specification

As drawn.

Specification for SD-12153-G
Width	0.603" 15.3 mm
Height	0.575" 14.6 mm
Flange	0.150" 3.8 mm
Material	Silicone
Durometer	60 Shore A
Colour	Gray
Mount	Push On
Bulb position	Side
Core	1.120in Wire
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DU-006 0.813 × 0.485 in · Rubber SD-12152 0.747 × 0.550 in · Rubber
