SD-109-G

W × H1.150 × 0.820 in MaterialSilicone

Special Compounds Bulb Seals

Request a quote for SD-109-G → Spec sheet (PDF) Print spec sheet

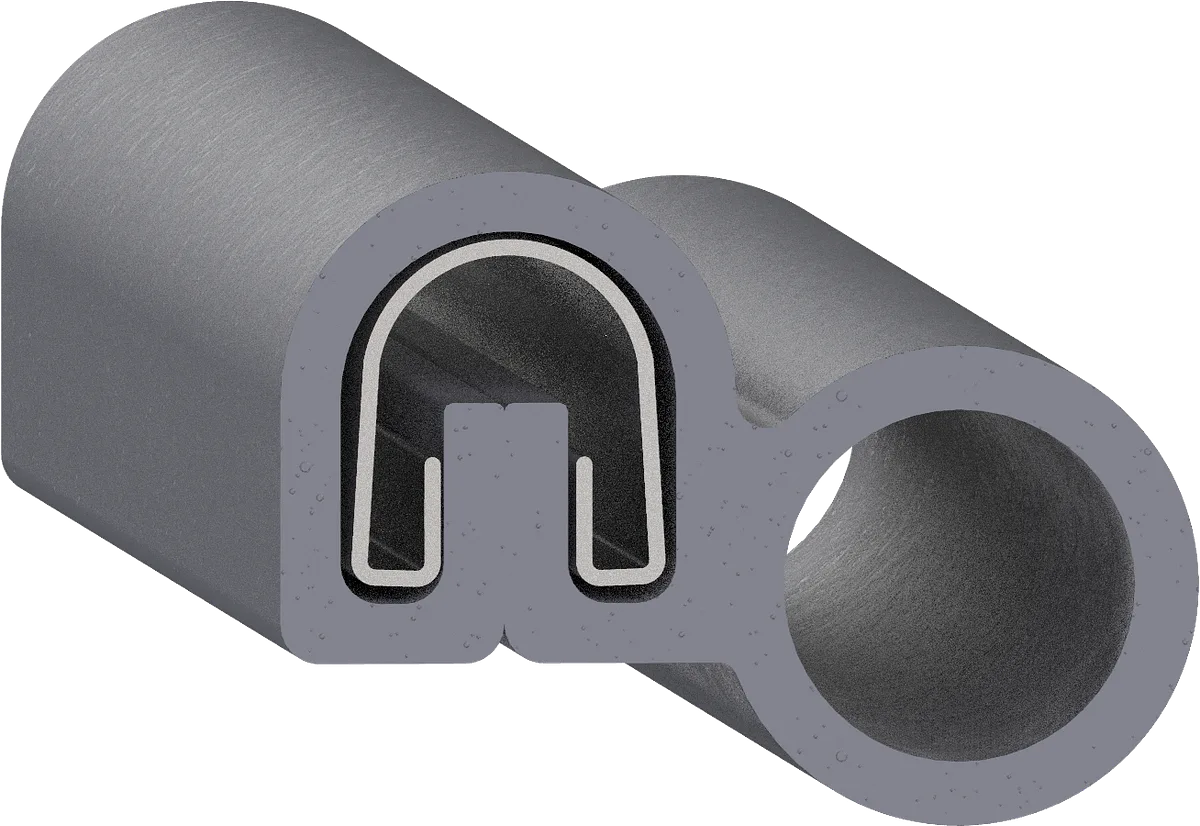

Cross-section drawing of SD-109-G — Cross-section — SD-109-GNot to scale

Specification

As drawn.

Specification for SD-109-G
Width	1.150" 29.2 mm
Height	0.820" 20.8 mm
Flange	0.125" 3.2 mm
Material	Silicone
Durometer	60 Shore A
Colour	Gray
Mount	Push On
Bulb position	Side
Core	SD-487 Spring Steel
Industries	Heavy Trucks
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

1 interchangeable part

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-109 1.120 × 0.890 in · Rubber
