SD-170-G

W × H0.950 × 1.750 in MaterialSilicone

Special Compounds Bulb Seals

Request a quote for SD-170-G → Spec sheet (PDF) Print spec sheet

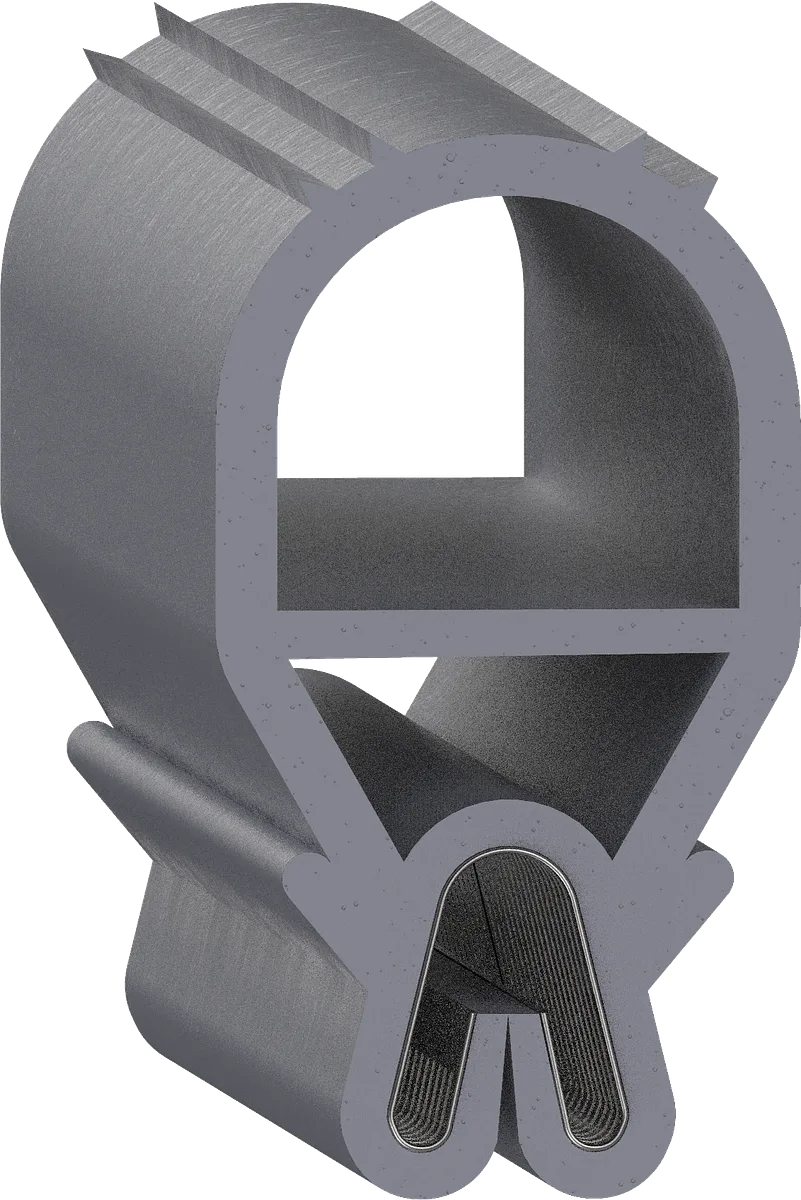

Cross-section drawing of SD-170-G — Cross-section — SD-170-GNot to scale

Specification

As drawn.

Specification for SD-170-G
Width	0.950" 24.1 mm
Height	1.750" 44.4 mm
Flange	0.125" 3.2 mm
Material	Silicone
Durometer	70 Shore A
Colour	Gray
Mount	Push On
Bulb position	Top
Core	SD-487 Spring Steel
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

2 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-170 1.050 × 1.850 in · Rubber SD-170-W 1.000 × 1.850 in · Rubber
