Seal catalogue · Special Compounds · Part

SD-12182-G copy

SD-12182-G

W × H0.625 × 1.250 in MaterialSilicone

Special Compounds Bulb Seals

Request a quote for SD-12182-G → Spec sheet (PDF) Print spec sheet

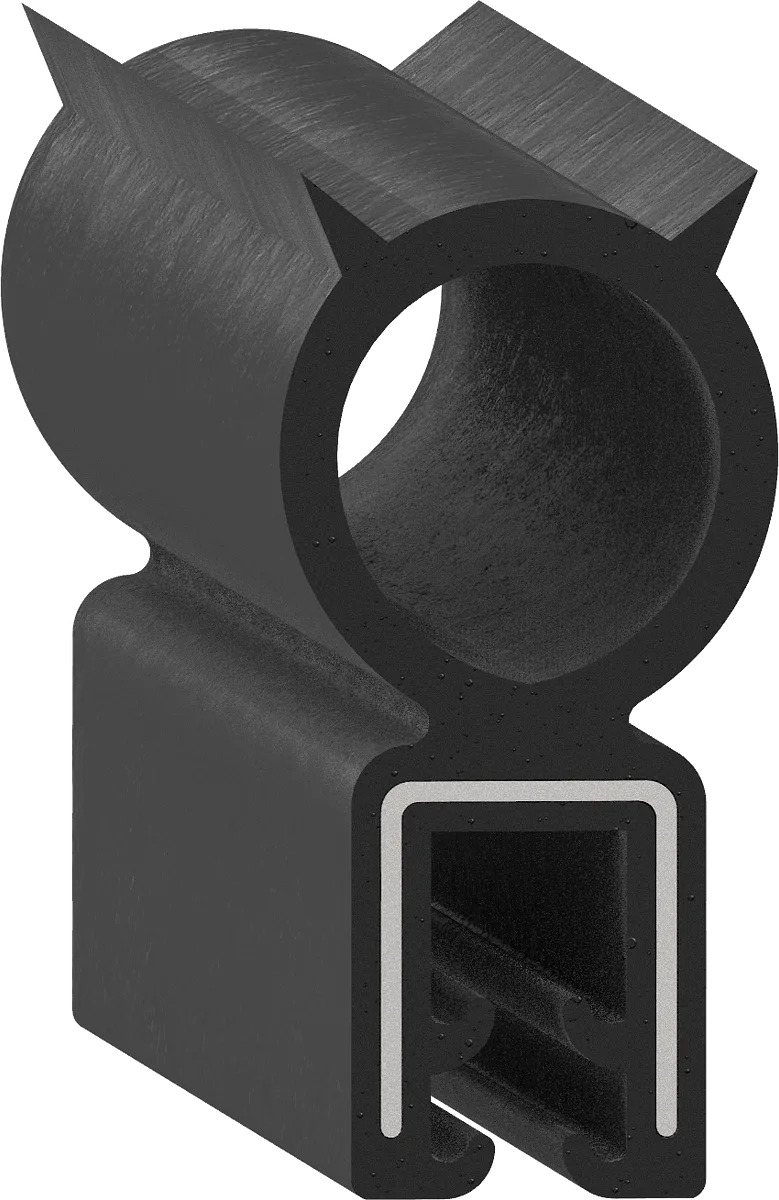

Cross-section drawing of SD-12182-G — Cross-section — SD-12182-GNot to scale

Specification

As drawn.

Specification for SD-12182-G
Width	0.625" 15.9 mm
Height	1.250" 31.8 mm
Flange	0.245" 6.2 mm
Material	Silicone
Durometer	60 Shore A
Colour	Black
Mount	Push On
Bulb position	Top
Core	1.120in Wire
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.
