Trim Finder

Find the trim by style, number or size.

Type a part number, a dimension or a material. Narrow the catalogue by style, size and compound — the same fields that appear on each drawing.

10
profiles matching · Download CSV
10 profiles
Cards Table
Sort
Part Width Height Material Mount Style
Gray Remove filter Reset all

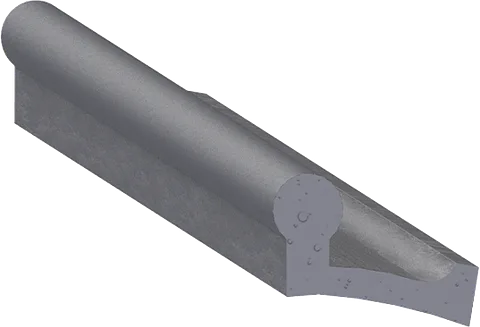

  1. Cross-section drawing of DD-016
    DD-016
    DD-016
    W × H
    0.265 × 0.190 in
    Material
    PVC
    Style
    Other Extrusion
    Quote Compare

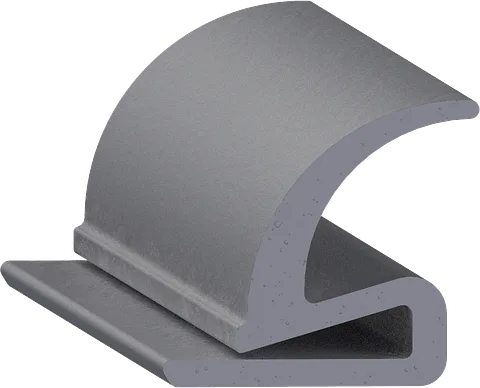

  2. Cross-section drawing of FL-041
    FL-041
    FL-041
    W × H
    0.610 × 0.610 in
    Material
    Rubber
    Style
    Flap Seal
    Quote Compare

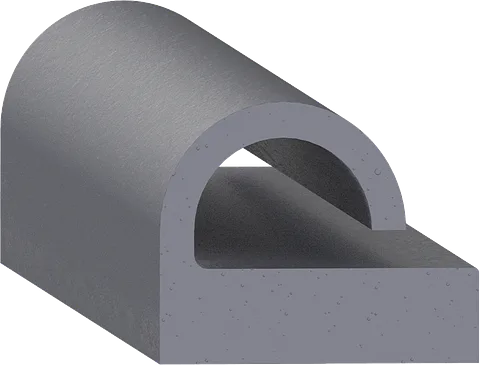

  3. Cross-section drawing of RE-027
    RE-027
    RE-027
    W × H
    0.700 × 0.550 in
    Material
    Silicone
    Style
    Other Extrusion
    Quote Compare
  4. Cross-section drawing of RE-092-Gray
    RE-092-Gray
    RE-092 Gray
    W × H
    0.315 × 0.827 in
    Material
    Rubber
    Style
    Edge Trim
    Quote Compare

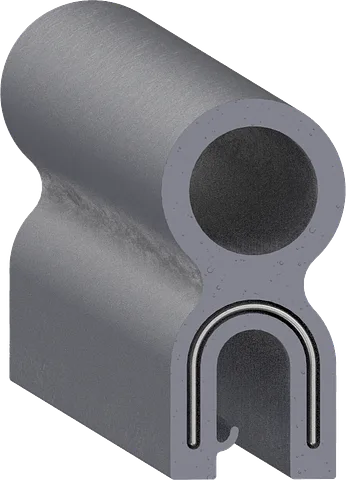

  5. Cross-section drawing of SD-10109-G
    SD-10109-G
    SD-10109 G
    W × H
    0.400 × 0.825 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare

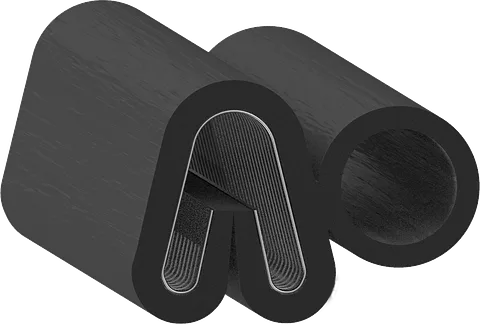

  6. Cross-section drawing of SD-106-G
    SD-106-G
    SD-106-G
    W × H
    0.930 × 0.600 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare

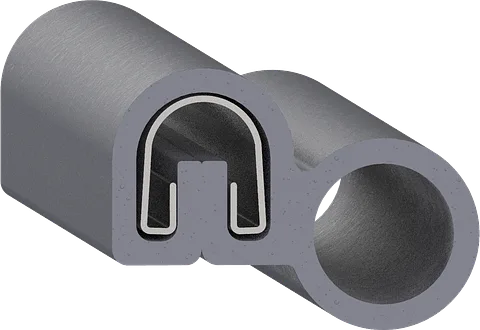

  7. Cross-section drawing of SD-109-G
    SD-109-G
    SD-109-G
    W × H
    1.150 × 0.820 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare

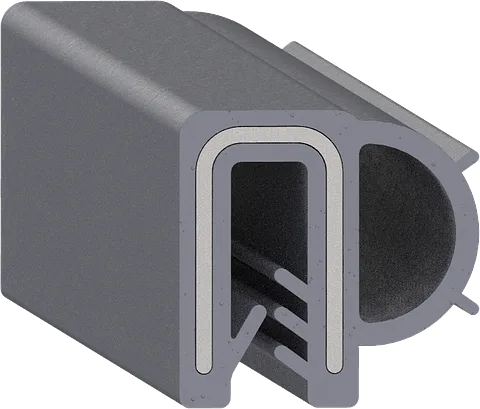

  8. Cross-section drawing of SD-12153-G
    SD-12153-G
    SD-12153-G
    W × H
    0.603 × 0.575 in
    Material
    Silicone
    Style
    Special Compound
    Quote Compare

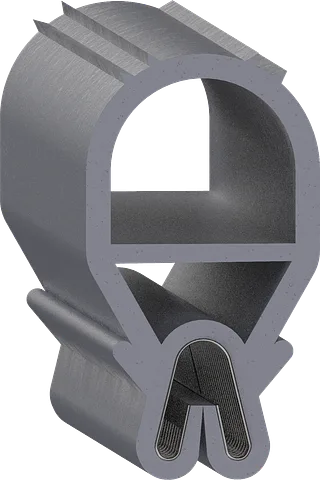

  9. Cross-section drawing of SD-170-G
    SD-170-G
    SD-170-G
    W × H
    0.950 × 1.750 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare
  10. Cross-section drawing of TS-168
    TS-168
    TS-168
    W × H
    0.422 × 0.511 in
    Material
    Rubber
    Style
    Other Extrusion
    Quote Compare
