Seal catalogue · Push On Rubber Seals · Part

FL-041 copy

FL-041

W × H0.610 × 0.610 in MaterialRubber
Push On Rubber Seals
Request a quote for FL-041 → Spec sheet (PDF) Print spec sheet

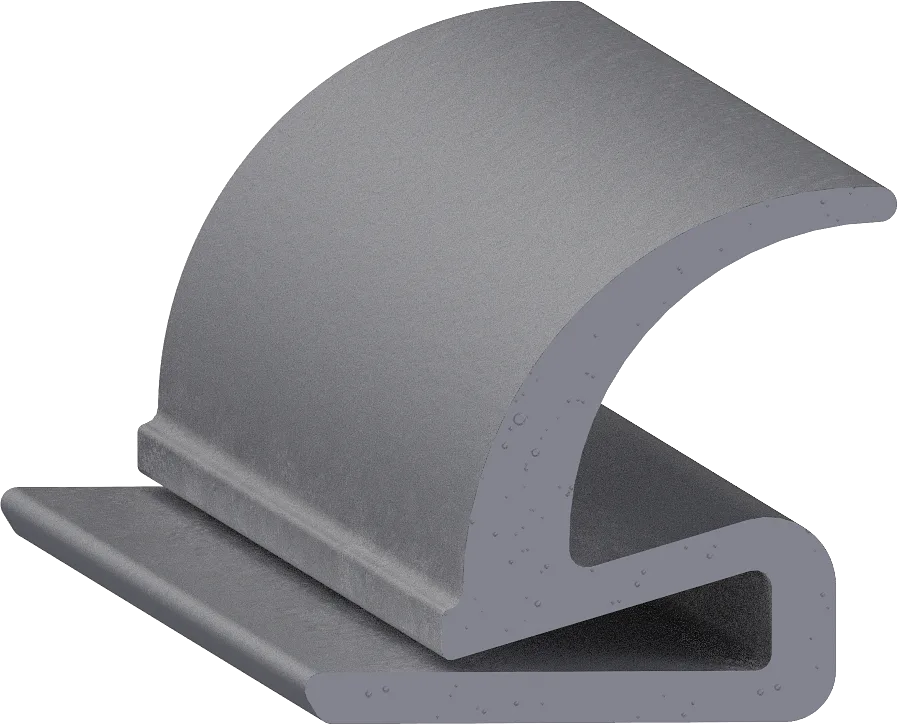

Cross-section drawing of FL-041
Cross-section — FL-041Not to scale
Specification

As drawn.

Specification for FL-041
Width 0.610" 15.5 mm
Height 0.610" 15.5 mm
Flange 0.122" 3.1 mm
Material Rubber
Type Dense
Durometer 80 Shore A
Colour Gray
Mount Push On
ShapeFlap Seal
Flap0.670" 17.0 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
