SD-12202

W × H0.550 × 0.975 in MaterialPVC

Edge Trims

Request a quote for SD-12202 → Spec sheet (PDF) Print spec sheet

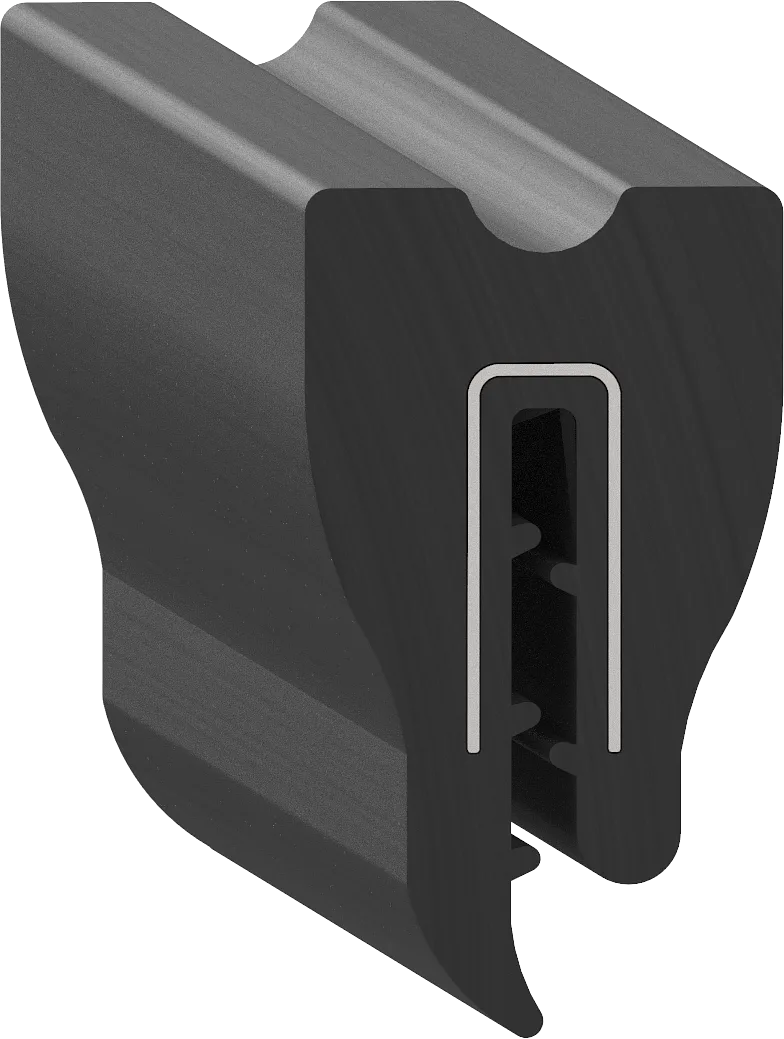

Cross-section drawing of SD-12202 — Cross-section — SD-12202Not to scale

Specification

As drawn.

Specification for SD-12202
Width	0.550" 14.0 mm
Height	0.975" 24.8 mm
Flange	0.075" 1.9 mm
Material	PVC
Durometer	70 Shore A
Colour	Black
Mount	Push On
Core	1in Center Web Steel

Dimensions in inches to three places, as on the drawing; millimetres computed.
