· Part

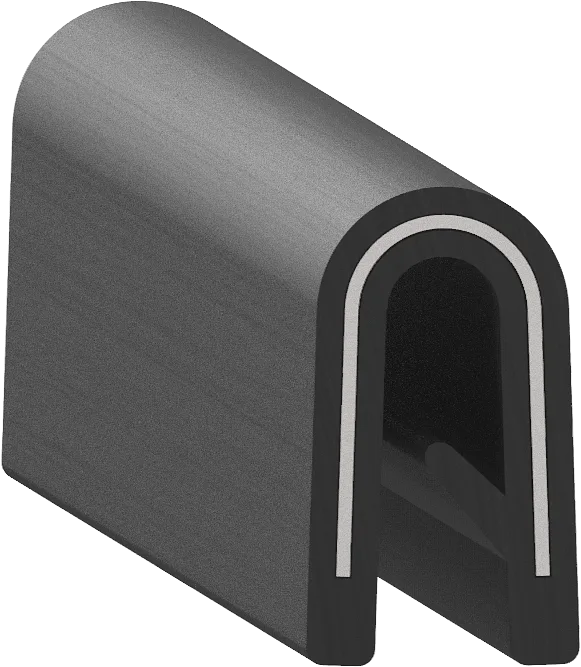

SD-1205-AL-0156-Opening copy
SD-1205 AL w/ 0.156in Opening
W × H0.315 × 0.550 in
MaterialPVC
Specification
As drawn.
| Width | 0.315" 8.0 mm |
|---|---|
| Height | 0.550" 14.0 mm |
| Flange | 0.130" 3.3 mm |
| Material | PVC |
| Durometer | 80 Shore A |
| Colour | Black |
| Mount | Push On |
| Core | 1in Stamped Aluminum |
Dimensions in inches to three places, as on the drawing; millimetres computed.
