Trim Finder

Find the trim by style, number or size.

Type a part number, a dimension or a material. Narrow the catalogue by style, size and compound — the same fields that appear on each drawing.

79
profiles matching · Download CSV
79 profiles · page 1 of 3
Cards Table
Sort
Part Width Height Material Mount Style
Push On Remove filter Top Remove filter Reset all
  1. Cross-section drawing of BL-026
    BL-026
    BL-026
    W × H
    2.630 × 1.860 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  2. Cross-section drawing of DU-009
    DU-009
    DU-009
    W × H
    0.510 × 0.950 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  3. Cross-section drawing of DU-069
    DU-069
    DU-069
    W × H
    0.709 × 1.429 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  4. Cross-section drawing of DU-072
    DU-072
    DU-072
    W × H
    0.600 × 1.165 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  5. Cross-section drawing of DU-074
    DU-074
    DU-074
    W × H
    0.985 × 1.405 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  6. Cross-section drawing of DU-116
    DU-116
    DU-116
    W × H
    0.660 × 1.250 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  7. Cross-section drawing of DU-127
    DU-127
    DU-127
    W × H
    0.600 × 0.830 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  8. Cross-section drawing of DU-130
    DU-130
    DU-130
    W × H
    0.360 × 0.675 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  9. Cross-section drawing of DU-165
    DU-165
    DU-165
    W × H
    0.842 × 1.326 in
    Material
    Rubber
    Style
    Dual Durometer Seal
    Quote Compare
  10. Cross-section drawing of DU-182
    DU-182
    DU-182
    W × H
    0.540 × 0.970 in
    Material
    Rubber
    Style
    Dual Durometer Seal
    Quote Compare
  11. Cross-section drawing of DU-183
    DU-183
    DU-183
    W × H
    0.622 × 1.375 in
    Material
    Rubber
    Style
    Dual Durometer Seal
    Quote Compare
  12. Cross-section drawing of DU-188
    DU-188
    DU-188
    W × H
    0.329 × 0.614 in
    Material
    Rubber
    Style
    Dual Durometer Seal
    Quote Compare
  13. Cross-section drawing of DU-206
    DU-206
    DU-206
    W × H
    0.430 × 0.827 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  14. Cross-section drawing of ED-17041
    ED-17041
    ED-17041
    W × H
    2.400 × 1.800 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  15. Cross-section drawing of ED-17041-W
    ED-17041-W
    ED-17041-W
    W × H
    2.400 × 1.800 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  16. Cross-section drawing of ED-5370-B
    ED-5370-B
    ED-5370-B
    W × H
    0.480 × 1.275 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  17. Cross-section drawing of ED-5374-T
    ED-5374-T
    ED-5374-T
    W × H
    0.690 × 1.672 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  18. Cross-section drawing of RE-126
    RE-126
    RE-126
    W × H
    0.380 × 0.750 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  19. Drawing to follow
    SD-010-250in-Top-Bulb
    SD-010 w/250 Top Bulb
    W × H
    0.250 × 0.620 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

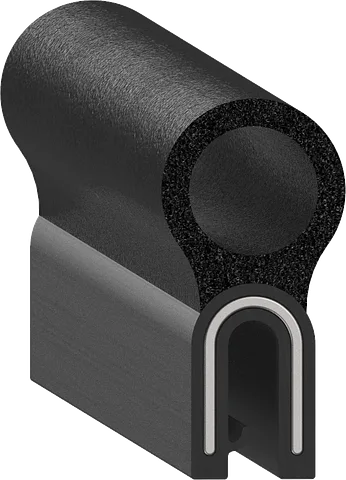

  20. Cross-section drawing of SD-10108
    SD-10108
    SD-10108
    W × H
    0.400 × 0.825 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  21. Cross-section drawing of SD-10109-G
    SD-10109-G
    SD-10109 G
    W × H
    0.400 × 0.825 in
    Material
    Silicone
    Style
    Bulb Seal
    Quote Compare
  22. Cross-section drawing of SD-108-T
    SD-108-T
    SD-108-T
    W × H
    0.400 × 0.996 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  23. Cross-section drawing of SD-108-T-130-Opening
    SD-108-T-130-Opening
    SD-108-T .130 Opening
    W × H
    0.400 × 0.996 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  24. Cross-section drawing of SD-110-T
    SD-110-T
    SD-110-T
    W × H
    0.500 × 1.040 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  25. Cross-section drawing of SD-110-T-AL-1875-IN-Opening
    SD-110-T-AL-1875-IN-Opening
    SD-110-T-AL-.1875 IN Opening
    W × H
    0.500 × 1.040 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  26. Cross-section drawing of SD-110-T-W
    SD-110-T-W
    SD-110-T-W
    W × H
    0.500 × 1.040 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  27. Cross-section drawing of SD-1205-437in-Top-Bulb
    SD-1205-437in-Top-Bulb
    SD-1205 w/ 0.437in Top Bulb
    W × H
    0.437 × 0.987 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  28. Cross-section drawing of SD-1205-AL-0625in-375in-Top-Bulb
    SD-1205-AL-0625in-375in-Top-Bulb
    SD-1205-AL-1/16in-3/8in Top Bulb
    W × H
    0.375 × 0.925 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  29. Cross-section drawing of SD-1205-AL-0625in-625in-Top-Bulb
    SD-1205-AL-0625in-625in-Top-Bulb
    SD-1205-AL-1/16in-5/8in Top Bulb
    W × H
    0.625 × 1.175 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  30. Cross-section drawing of SD-1205-AL-1875in-437in-Top-Bulb
    SD-1205-AL-1875in-437in-Top-Bulb
    SD-1205-AL-3/16in-7/16in Top Bulb
    W × H
    0.438 × 0.988 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
