Specification

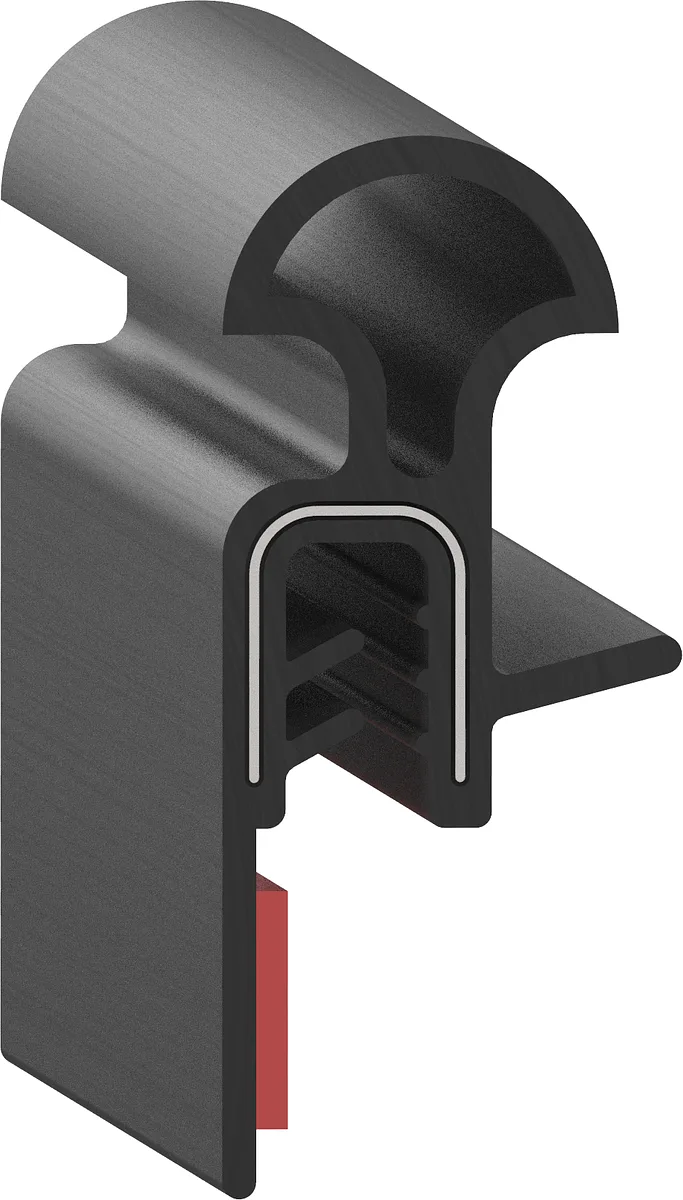

As drawn.
| Width | 0.690" 17.5 mm |
|---|---|
| Height | 1.672" 42.5 mm |
| Flange | 0.225" 5.7 mm |
| Material | Rubber |
| Type | Dense |
| Durometer | 70 Shore A |
| Colour | Black |
| Mount | Push On, Tape |
| Bulb position | Top |
| Core | 1.120in Wire |
| Tape | 3M Heat-Activated Tape |
| Shape | Bulb Seal |
| Also mounts | Push On and Tape |
Dimensions in inches to three places, as on the drawing; millimetres computed.
Need it in volume, or to a change?
