DU-009

W × H0.510 × 0.950 in MaterialRubber

Bulb Seals

Request a quote for DU-009 → Spec sheet (PDF) Print spec sheet

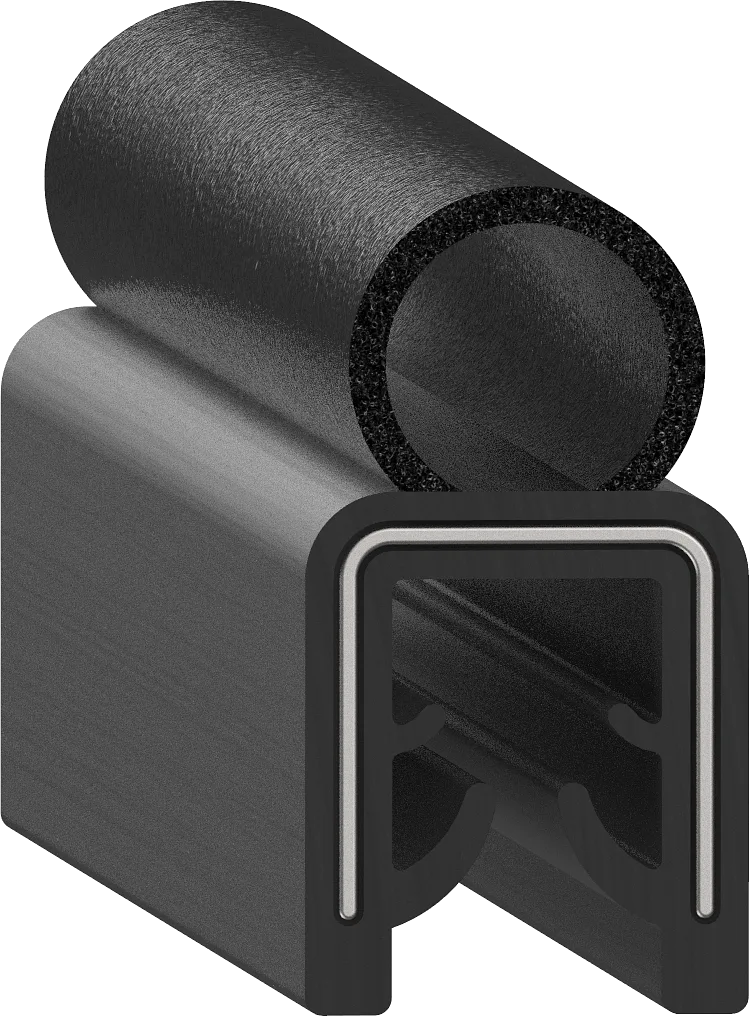

Cross-section drawing of DU-009 — Cross-section — DU-009Not to scale

Specification

As drawn.

Specification for DU-009
Width	0.510" 13.0 mm
Height	0.950" 24.1 mm
Flange	0.310" 7.9 mm
Material	Rubber
Type	Sponge
Durometer	2A2 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Top
Core	1.120in Wire
Second durometer	70 Durometer
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

6 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DU-127 0.600 × 0.830 in · Rubber DU-130 0.360 × 0.675 in · Rubber ED-5370-B 0.480 × 1.275 in · Rubber SD-12133 0.520 × 1.000 in · Rubber SD-12622 0.500 × 1.150 in · Rubber SD-12626 0.625 × 1.300 in · Rubber
