Seal catalogue · Bulb Seals · Part

ED-5370-B copy

ED-5370-B

W × H0.480 × 1.275 in MaterialRubber

Bulb Seals

Request a quote for ED-5370-B → Spec sheet (PDF) Print spec sheet

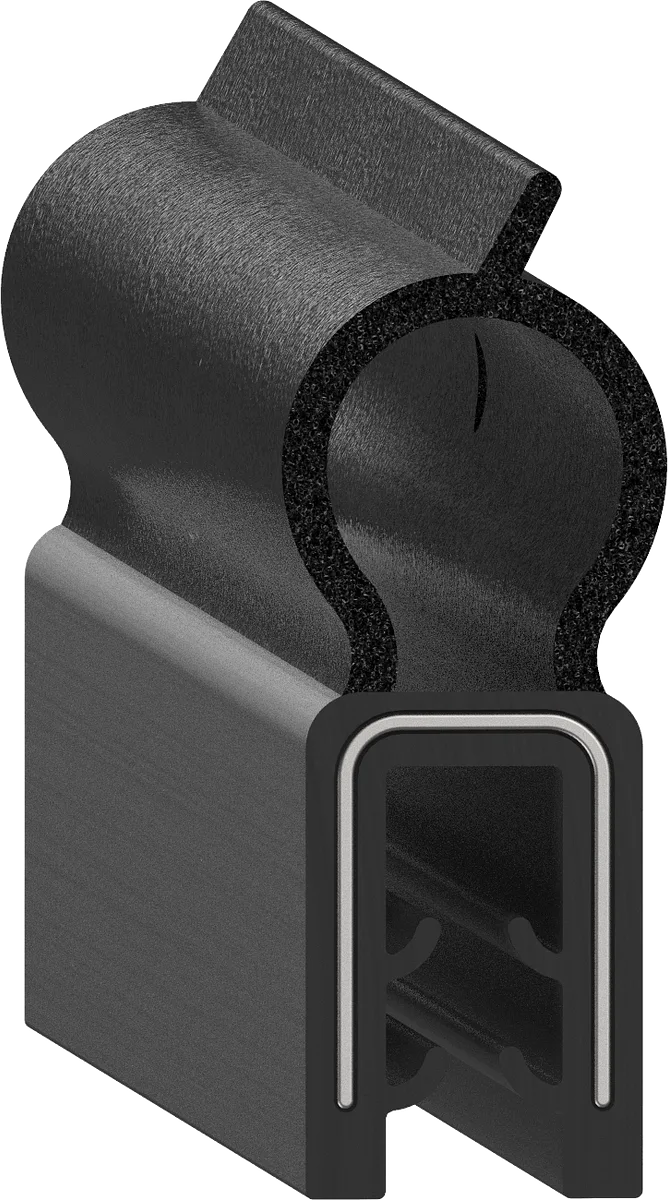

Cross-section drawing of ED-5370-B — Cross-section — ED-5370-BNot to scale

Specification

As drawn.

Specification for ED-5370-B
Width	0.480" 12.2 mm
Height	1.275" 32.4 mm
Flange	0.220" 5.6 mm
Material	Rubber
Type	Sponge
Durometer	2A5 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Top
Core	1.315in Wire
Second durometer	70 Durometer
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

6 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DU-009 0.510 × 0.950 in · Rubber DU-127 0.600 × 0.830 in · Rubber DU-130 0.360 × 0.675 in · Rubber SD-12133 0.520 × 1.000 in · Rubber SD-12622 0.500 × 1.150 in · Rubber SD-12626 0.625 × 1.300 in · Rubber
