Seal catalogue · Push On Rubber Seals · Part

ED-17041 copy

ED-17041

W × H2.400 × 1.800 in MaterialRubber

Push On Rubber Seals Bulb Seals

Request a quote for ED-17041 → Spec sheet (PDF) Print spec sheet

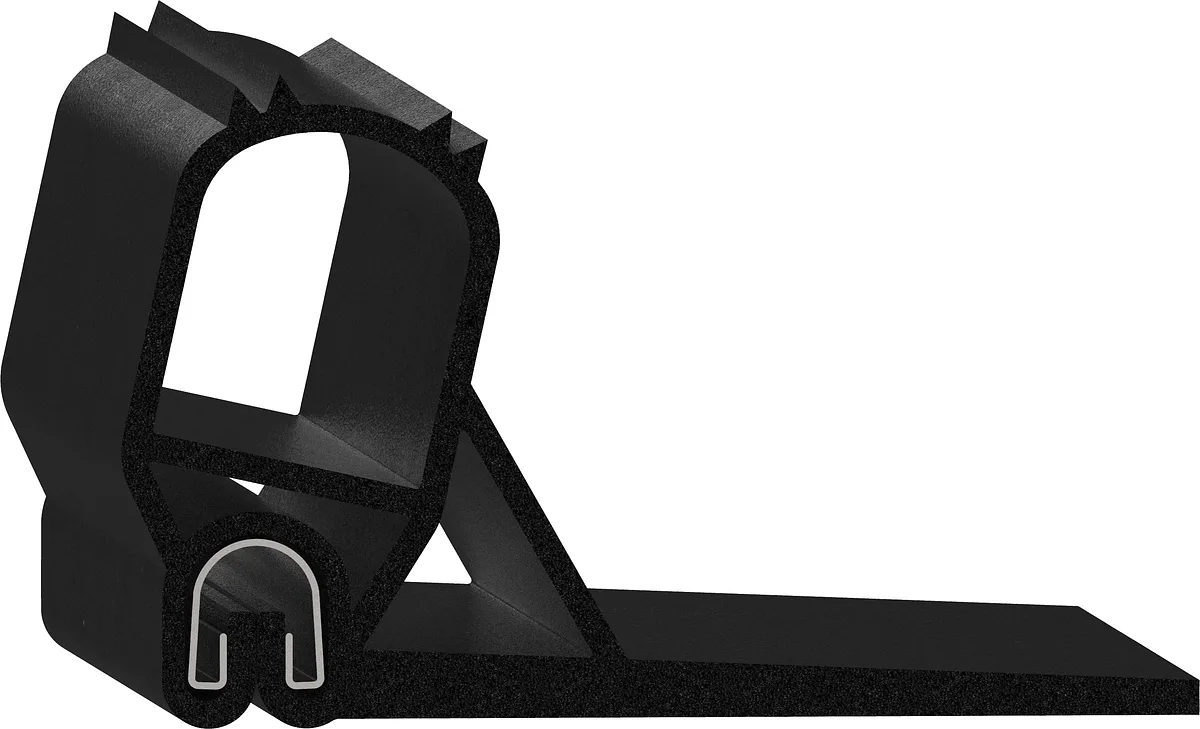

Cross-section drawing of ED-17041 — Cross-section — ED-17041Not to scale

Specification

As drawn.

Specification for ED-17041
Width	2.400" 61.0 mm
Height	1.800" 45.7 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A5 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Top
Core	SD-487 Spring Steel
Shape	Bulb Seal and Flap Seal
Flap	2.450" 62.2 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.
