Trim Finder

Find the trim by style, number or size.

Type a part number, a dimension or a material. Narrow the catalogue by style, size and compound — the same fields that appear on each drawing.

16
profiles matching · Download CSV
16 profiles
Cards Table
Sort
Part Width Height Material Mount Style
“0.500 bulb” Clear search Reset all

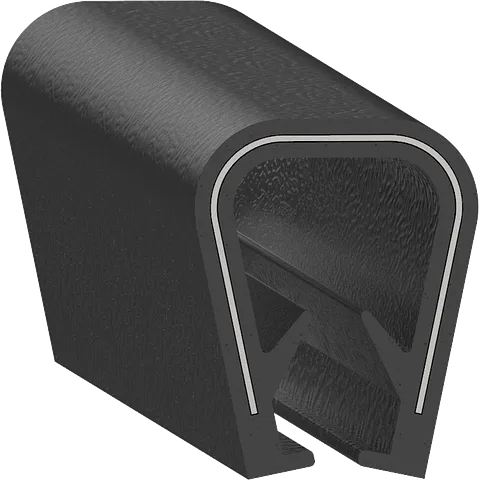

  1. Cross-section drawing of SD-1430-BOYD
    SD-1430-BOYD
    SD-1430-BOYD
    W × H
    0.500 × 0.650 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare

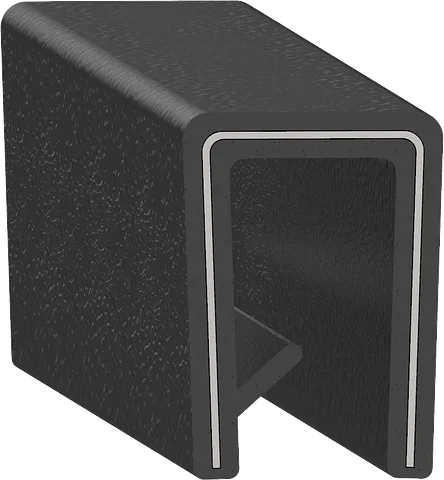

  2. Cross-section drawing of SD-1402
    SD-1402
    SD-1402
    W × H
    0.500 × 0.700 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare

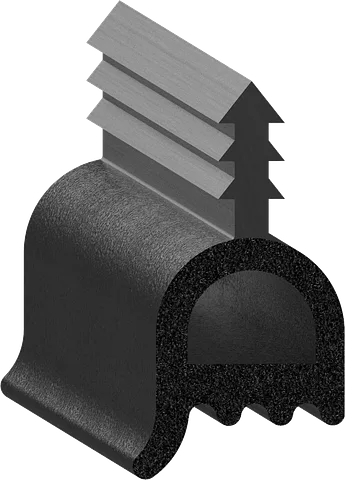

  3. Cross-section drawing of SD-12118
    SD-12118
    SD-12118
    W × H
    0.500 × 0.921 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  4. Cross-section drawing of RE-080
    RE-080
    RE-080
    W × H
    0.500 × 0.420 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  5. Cross-section drawing of SD-242-DT
    SD-242-DT
    SD-242-DT
    W × H
    0.500 × 0.200 in
    Material
    Rubber
    Style
    Tape Seal
    Quote Compare
  6. Cross-section drawing of 110-Bulb
    110-Bulb
    110 Bulb
    W × H
    0.500 × 0.500 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

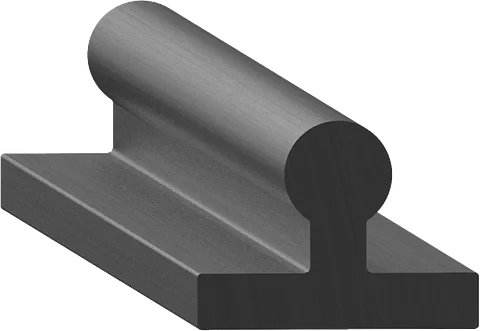

  7. Cross-section drawing of RE-061
    RE-061
    RE-061
    W × H
    0.500 × 0.370 in
    Material
    Rubber
    Style
    —
    Quote Compare

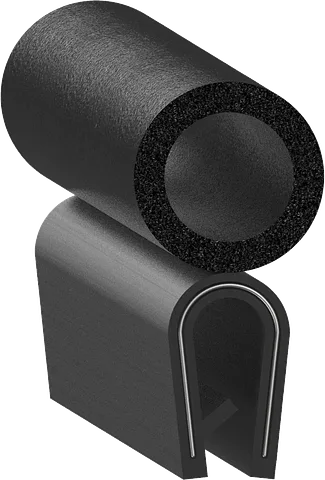

  8. Cross-section drawing of SD-110-T
    SD-110-T
    SD-110-T
    W × H
    0.500 × 1.040 in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare

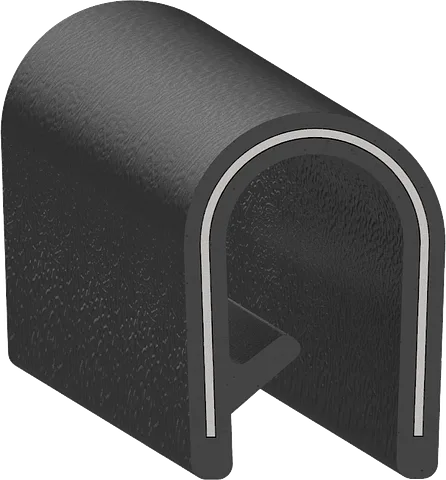

  9. Cross-section drawing of SD-1425
    SD-1425
    SD-1425
    W × H
    0.500 × 0.700 in
    Material
    PVC
    Style
    Edge Trim
    Quote Compare

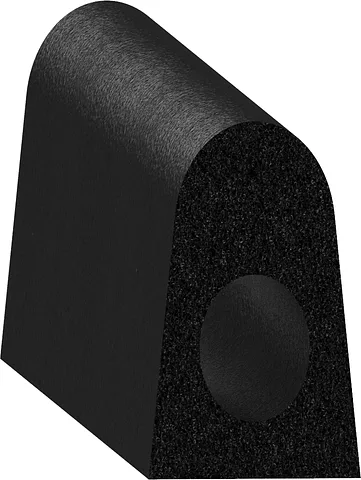

  10. Cross-section drawing of RE-103
    RE-103
    RE-103
    W × H
    0.500 × 0.630 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  11. Cross-section drawing of 25-Bulb
    25-Bulb
    1/4in Bulb
    W × H
    0.250 × 0.250 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

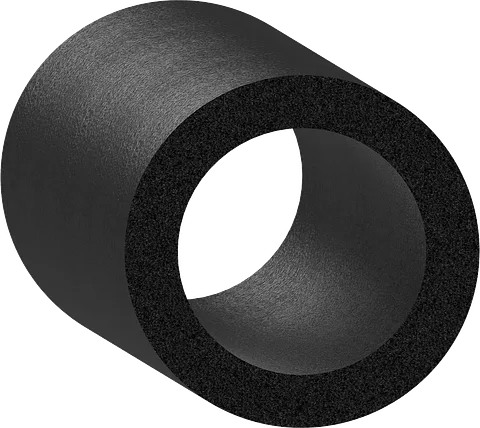

  12. Cross-section drawing of 1in-Bulb
    1in-Bulb
    1in Bulb
    W × H
    1.000 × 1.000 in
    Material
    Rubber
    Style
    Other Extrusion
    Quote Compare
  13. Cross-section drawing of 375-Bulb
    375-Bulb
    3/8in Bulb
    W × H
    0.375 × 0.375 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  14. Cross-section drawing of 437-Bulb
    437-Bulb
    .437 Bulb
    W × H
    0.437 × 0.437 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  15. Cross-section drawing of TH-500
    TH-500
    TH-500
    W × H
    5.000 × 0.200 in
    Material
    Rubber
    Style
    Flap Seal
    Quote Compare

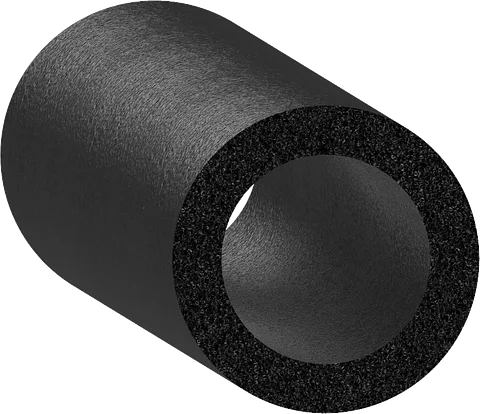

  16. Cross-section drawing of SD-120-Bulb
    SD-120-Bulb
    SD-120 Bulb
    W × H
    0.625 × 0.625 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
