Specification

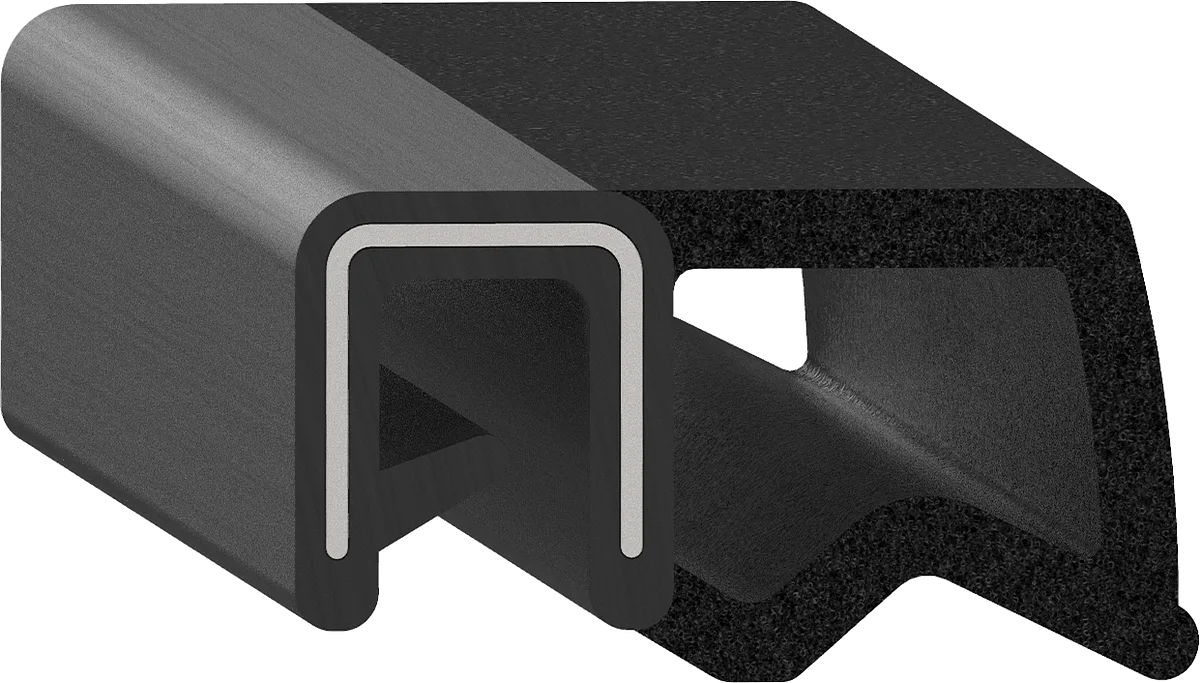

As drawn.
| Width | 1.074" 27.3 mm |
|---|---|
| Height | 0.560" 14.2 mm |
| Flange | 0.250" 6.4 mm |
| Material | Rubber |
| Type | Sponge |
| Durometer | 2A3 (sponge grade) |
| Colour | Black |
| Mount | Push On |
| Bulb position | Side |
| Core | 1in Wire |
| Second durometer | 70 Durometer |
| Shape | Bulb Seal |
Dimensions in inches to three places, as on the drawing; millimetres computed.
9 interchangeable parts
Substitutes from the catalogue.
Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.
DU-006
0.813 × 0.485 in · Rubber
DU-075
0.906 × 0.572 in · Silicone
DU-080
1.005 × 0.614 in · Rubber
DU-121
0.760 × 0.515 in · Rubber
SD-12136
0.900 × 0.565 in · Rubber
SD-12152
0.747 × 0.550 in · Rubber
SD-910
1.125 × 0.590 in · Rubber
SD-910-Auto-Crane
1.125 × 0.590 in · Rubber
SD-912-Collins-Bus
0.985 × 0.620 in · Rubber
