Seal catalogue · Bulb Seals · Part

SD-910 copy

SD-910

W × H1.125 × 0.590 in MaterialRubber

Bulb Seals

Request a quote for SD-910 → Spec sheet (PDF) Print spec sheet

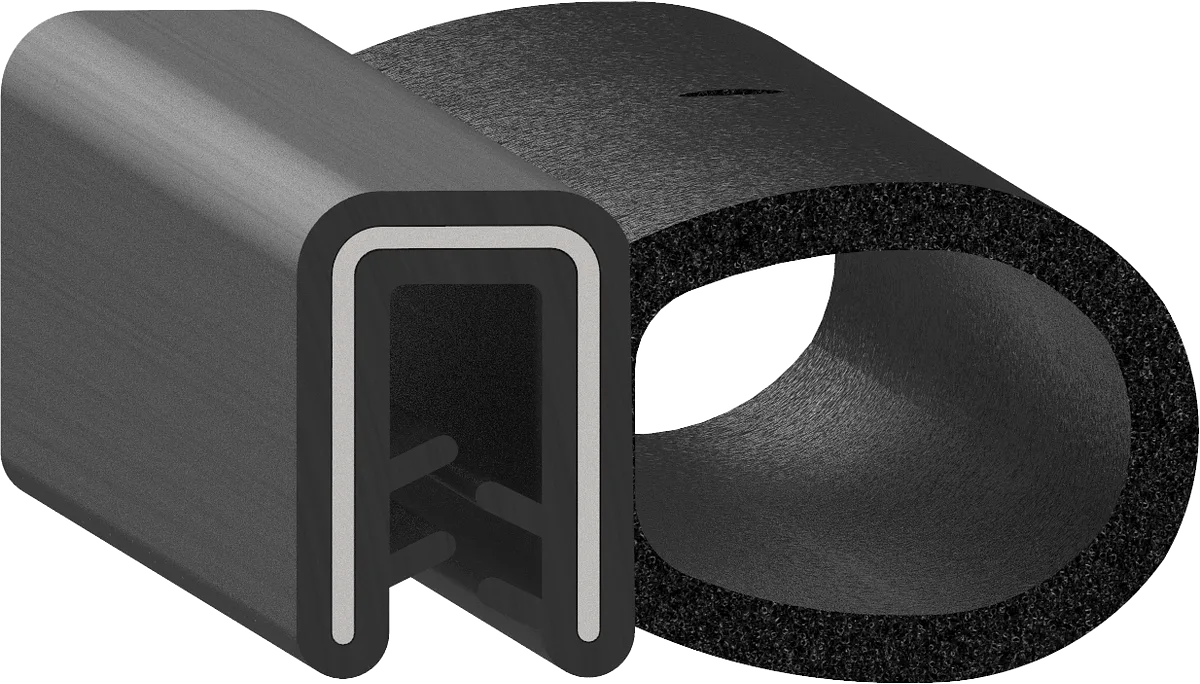

Cross-section drawing of SD-910 — Cross-section — SD-910Not to scale

Specification

As drawn.

Specification for SD-910
Width	1.125" 28.6 mm
Height	0.590" 15.0 mm
Flange	0.180" 4.6 mm
Material	Rubber
Type	Sponge
Durometer	2A2 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Side
Core	1.120in Wire
Industries	Construction Equipment and Utility Vehicles
Second durometer	70 Durometer
Shape	Bulb Seal

Coil lengths: 60 ft · 300 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

8 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DU-006 0.813 × 0.485 in · Rubber DU-038 1.074 × 0.560 in · Rubber DU-075 0.906 × 0.572 in · Silicone DU-080 1.005 × 0.614 in · Rubber DU-121 0.760 × 0.515 in · Rubber SD-12136 0.900 × 0.565 in · Rubber SD-12152 0.747 × 0.550 in · Rubber SD-910-Auto-Crane 1.125 × 0.590 in · Rubber

Need it in volume, or to a change?

Tell an engineer the application.

Request a quote →
