Seal catalogue · Bulb Seals · Part

SD-968-200-Flange copy

SD-968 w/200 Flange

W × H0.600 × 1.165 in MaterialRubber

Bulb Seals

Request a quote for SD-968-200-Flange → Spec sheet (PDF) Print spec sheet

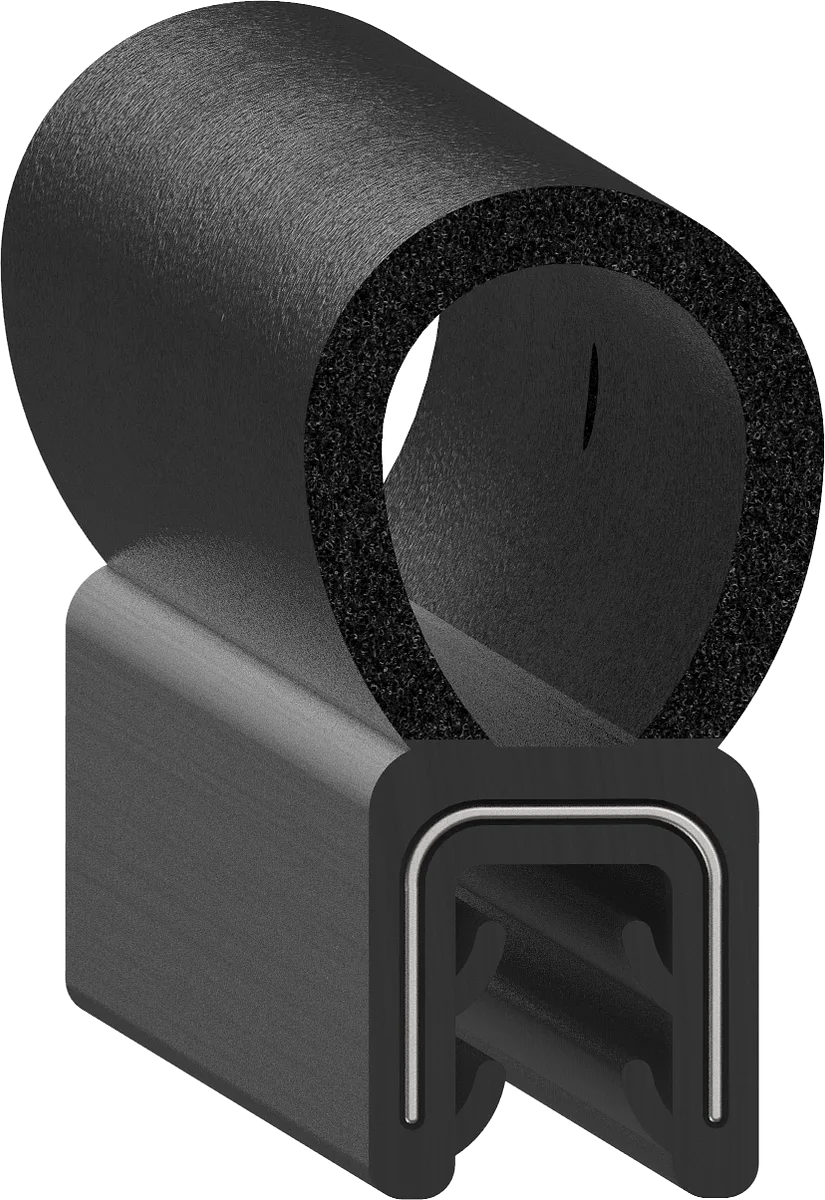

Cross-section drawing of SD-968-200-Flange — Cross-section — SD-968-200-FlangeNot to scale

Specification

As drawn.

Specification for SD-968-200-Flange
Width	0.600" 15.2 mm
Height	1.165" 29.6 mm
Flange	0.250" 6.4 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Top
Core	1.120in Wire
Second durometer	70 Durometer
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

9 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DU-069 0.709 × 1.429 in · Rubber DU-072 0.600 × 1.165 in · Rubber DU-116 0.660 × 1.250 in · Rubber SD-12122 0.600 × 1.400 in · Rubber SD-12155 0.787 × 1.296 in · Rubber SD-12672 0.680 × 1.670 in · Rubber SD-12676 0.600 × 1.130 in · Rubber SD-968 0.600 × 1.165 in · Rubber SD-968-Tip 0.600 × 1.320 in · Rubber
