Specification

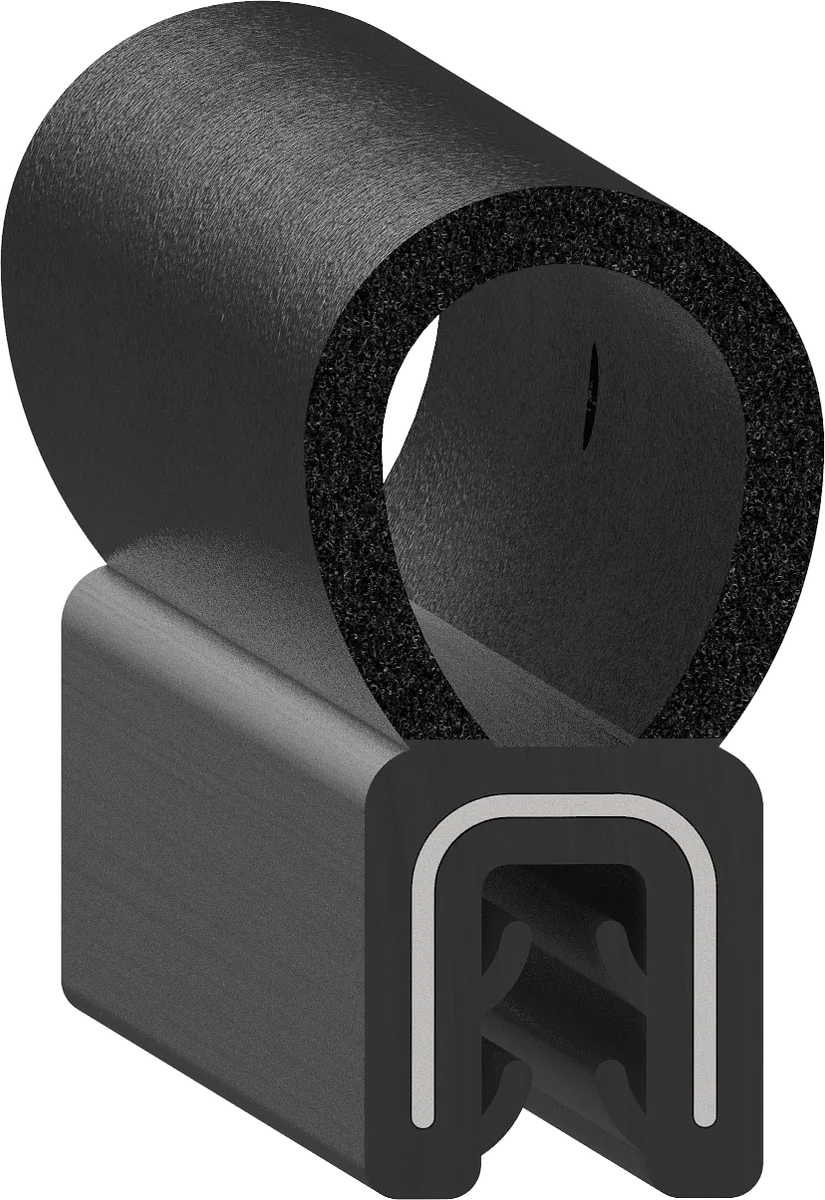

As drawn.
| Width | 0.600" 15.2 mm |
|---|---|
| Height | 1.165" 29.6 mm |
| Flange | 0.190" 4.8 mm |
| Material | Rubber |
| Type | Sponge |
| Durometer | 2A3 (sponge grade) |
| Colour | Black |
| Mount | Push On |
| Bulb position | Top |
| Core | 1.120in Wire |
| Industries | Emergency Vehicles and Utility Vehicles |
| Second durometer | 70 Durometer |
| Shape | Bulb Seal |
Coil lengths: 60 ft · 300 ft
Dimensions in inches to three places, as on the drawing; millimetres computed.
9 interchangeable parts
Substitutes from the catalogue.
Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.
DU-069
0.709 × 1.429 in · Rubber
DU-072
0.600 × 1.165 in · Rubber
DU-116
0.660 × 1.250 in · Rubber
SD-12122
0.600 × 1.400 in · Rubber
SD-12155
0.787 × 1.296 in · Rubber
SD-12672
0.680 × 1.670 in · Rubber
SD-12676
0.600 × 1.130 in · Rubber
SD-968-200-Flange
0.600 × 1.165 in · Rubber
SD-968-Tip
0.600 × 1.320 in · Rubber
