SD-12676 copy

SD-12676

W × H0.600 × 1.130 in MaterialRubber

Bulb Seals

Request a quote for SD-12676 → Spec sheet (PDF) Print spec sheet

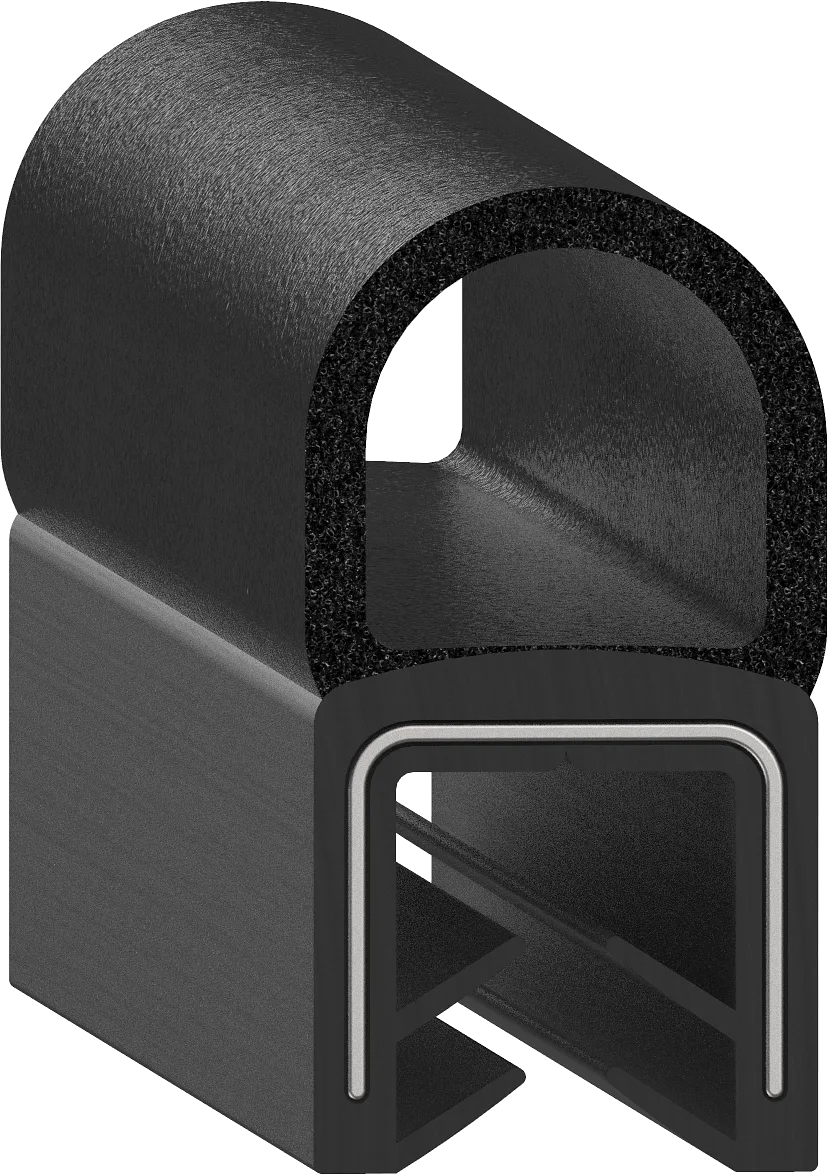

Cross-section drawing of SD-12676 — Cross-section — SD-12676Not to scale

Specification

As drawn.

Specification for SD-12676
Width	0.600" 15.2 mm
Height	1.130" 28.7 mm
Flange	0.400" 10.2 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Push On
Bulb position	Top
Core	1.315in Wire
Second durometer	70 Durometer
Shape	Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

7 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DU-010 0.625 × 1.240 in · Rubber DU-069 0.709 × 1.429 in · Rubber SD-12156 0.787 × 1.365 in · Rubber SD-12672 0.680 × 1.670 in · Rubber SD-968 0.600 × 1.165 in · Rubber SD-968-200-Flange 0.600 × 1.165 in · Rubber SD-968-Tip 0.600 × 1.320 in · Rubber
