SD-364

W × H1.190 × 0.750 in MaterialRubber

Request a quote for SD-364 → Spec sheet (PDF) Print spec sheet

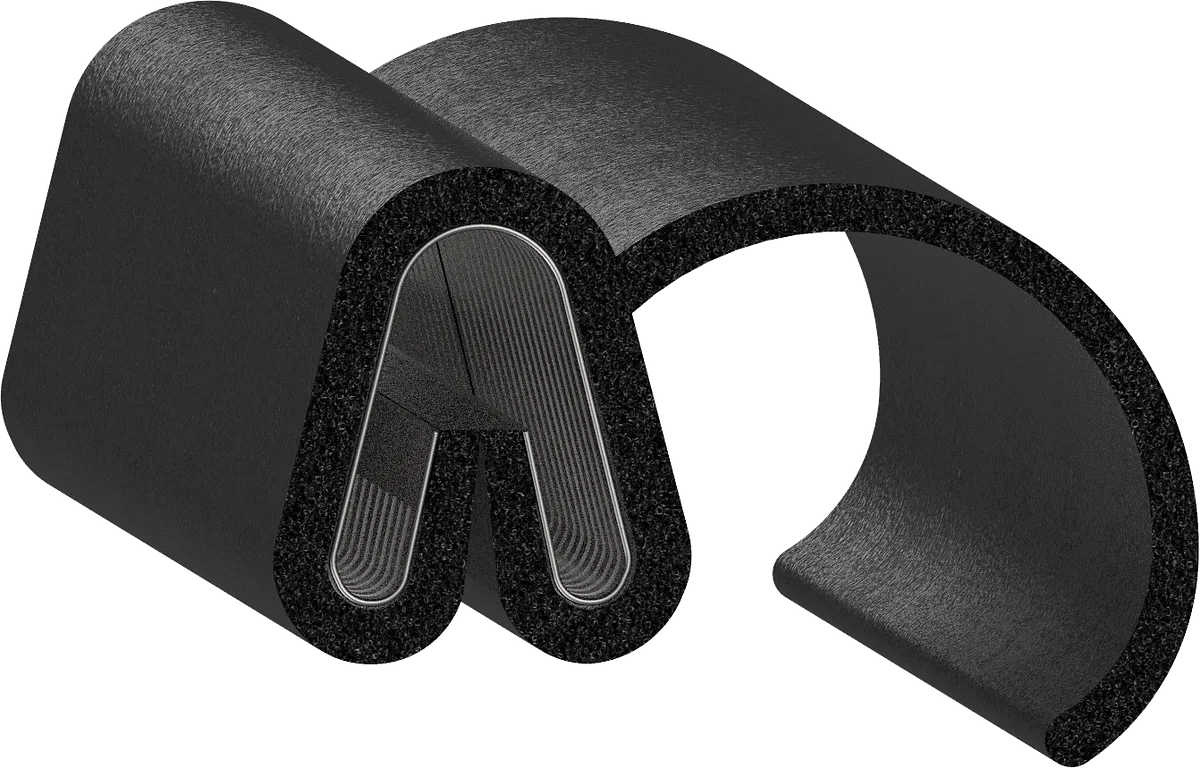

Cross-section drawing of SD-364 — Cross-section — SD-364Not to scale

Specification

As drawn.

Specification for SD-364
Width	1.190" 30.2 mm
Height	0.750" 19.0 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Push On
Core	SD-487 Spring Steel
Shape	Flap Seal
Flap	0.750" 19.0 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

8 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DU-004 1.524 × 0.600 in · Rubber FL-031 2.350 × 0.625 in · Rubber SD-12352 1.000 × 0.700 in · Rubber SD-12362 1.325 × 0.700 in · Rubber SD-351 1.000 × 0.830 in · Rubber SD-352 — × 0.625 in · Rubber SD-352-500L 0.961 × 0.750 in · Rubber SD-360 1.242 × 0.637 in · Rubber
