SD-12362

W × H1.325 × 0.700 in MaterialRubber

Request a quote for SD-12362 → Spec sheet (PDF) Print spec sheet

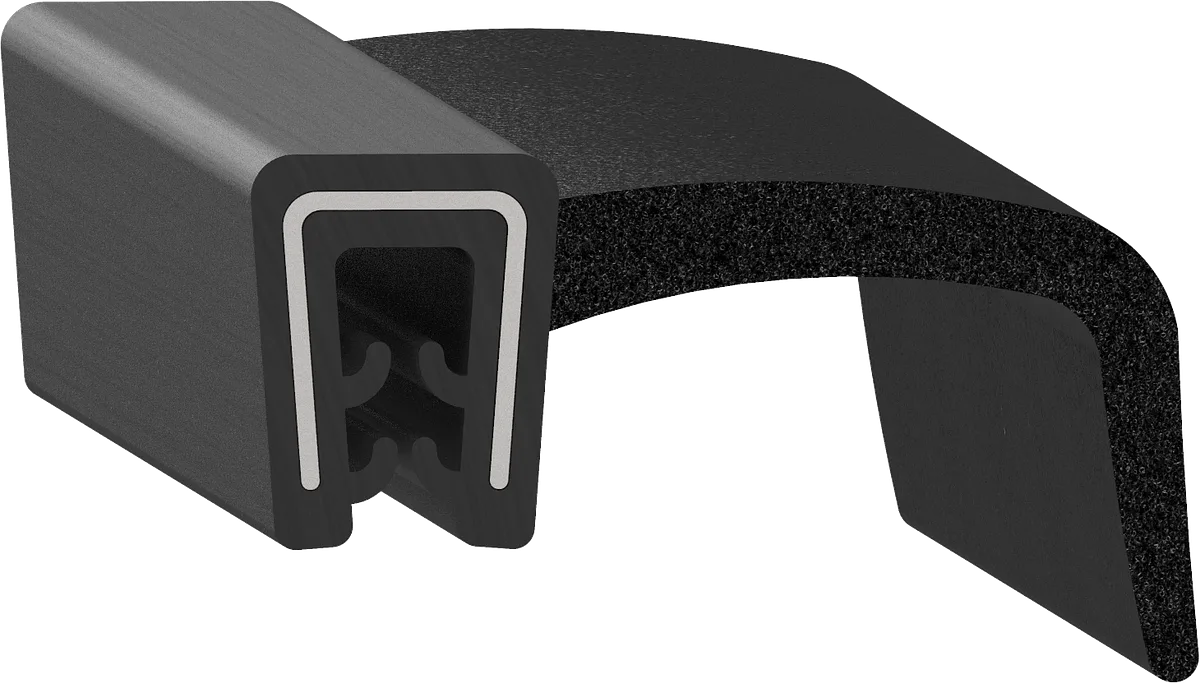

Cross-section drawing of SD-12362 — Cross-section — SD-12362Not to scale

Specification

As drawn.

Specification for SD-12362
Width	1.325" 33.7 mm
Height	0.700" 17.8 mm
Flange	0.195" 5.0 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Push On
Core	1.120in Wire
Second durometer	70 Durometer
Shape	Flap Seal
Flap	0.700" 17.8 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

6 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-12352 1.000 × 0.700 in · Rubber SD-351 1.000 × 0.830 in · Rubber SD-352 — × 0.625 in · Rubber SD-352-500L 0.961 × 0.750 in · Rubber SD-360 1.242 × 0.637 in · Rubber SD-364 1.190 × 0.750 in · Rubber
