SD-352-500L

W × H0.961 × 0.750 in MaterialRubber

Request a quote for SD-352-500L → Spec sheet (PDF) Print spec sheet

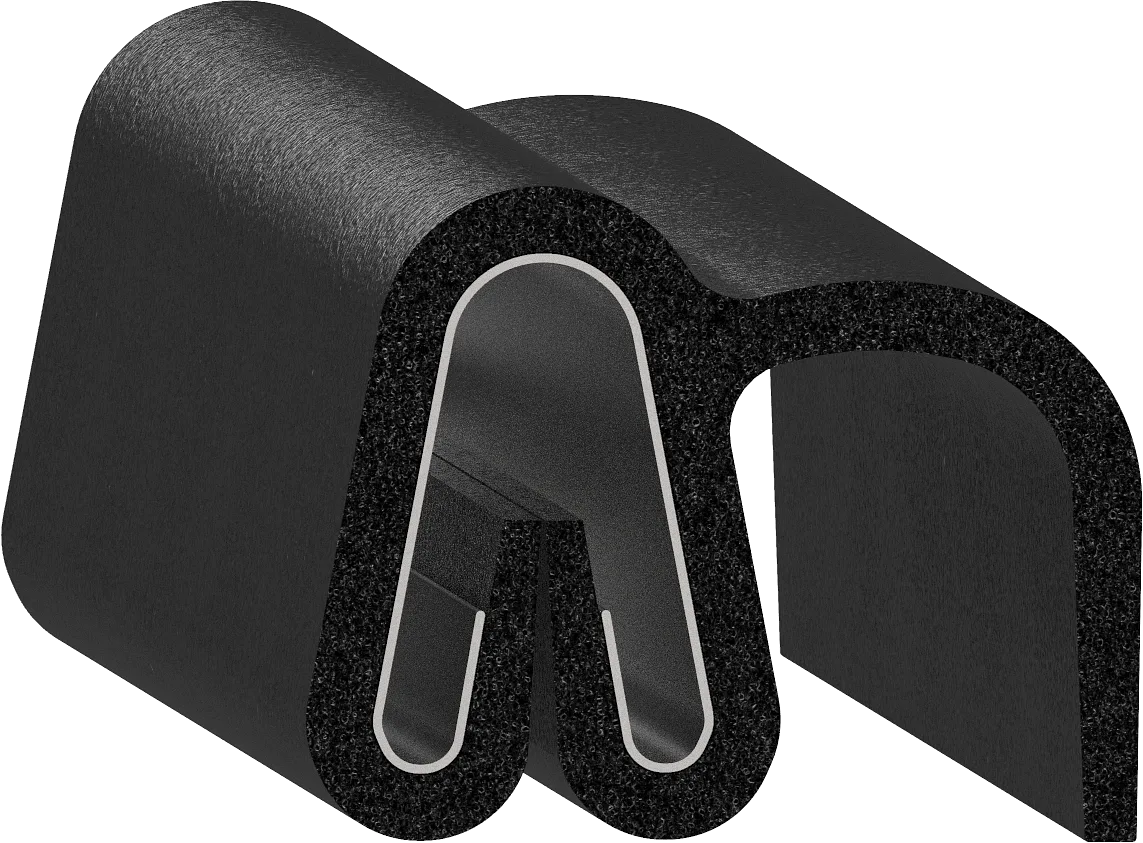

Cross-section drawing of SD-352-500L — Cross-section — SD-352-500LNot to scale

Specification

As drawn.

Specification for SD-352-500L
Width	0.961" 24.4 mm
Height	0.750" 19.0 mm
Flange	0.250" 6.4 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Push On
Core	SD-500L Spring Steel
Shape	Flap Seal
Flap	0.640" 16.3 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

6 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-12352 1.000 × 0.700 in · Rubber SD-12362 1.325 × 0.700 in · Rubber SD-351 1.000 × 0.830 in · Rubber SD-352 — × 0.625 in · Rubber SD-360 1.242 × 0.637 in · Rubber SD-364 1.190 × 0.750 in · Rubber
