FL-031

W × H2.350 × 0.625 in MaterialRubber

Request a quote for FL-031 → Spec sheet (PDF) Print spec sheet

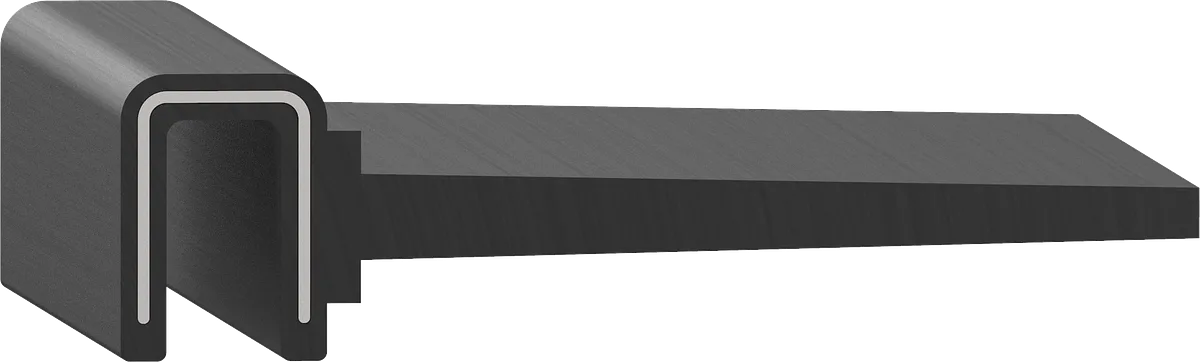

Cross-section drawing of FL-031 — Cross-section — FL-031Not to scale

Specification

As drawn.

Specification for FL-031
Width	2.350" 59.7 mm
Height	0.625" 15.9 mm
Flange	0.250" 6.4 mm
Material	Rubber
Type	Dense
Durometer	70 Shore A
Colour	Black
Mount	Push On
Core	1.315in Wire
Shape	Flap Seal
Flap	1.830" 46.5 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

5 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DU-004 1.524 × 0.600 in · Rubber SD-360 1.242 × 0.637 in · Rubber SD-364 1.190 × 0.750 in · Rubber SD-498 2.141 × 0.650 in · Rubber SD-499 1.460 × 0.600 in · Rubber
