SD-499

W × H1.460 × 0.600 in MaterialRubber

Request a quote for SD-499 → Spec sheet (PDF) Print spec sheet

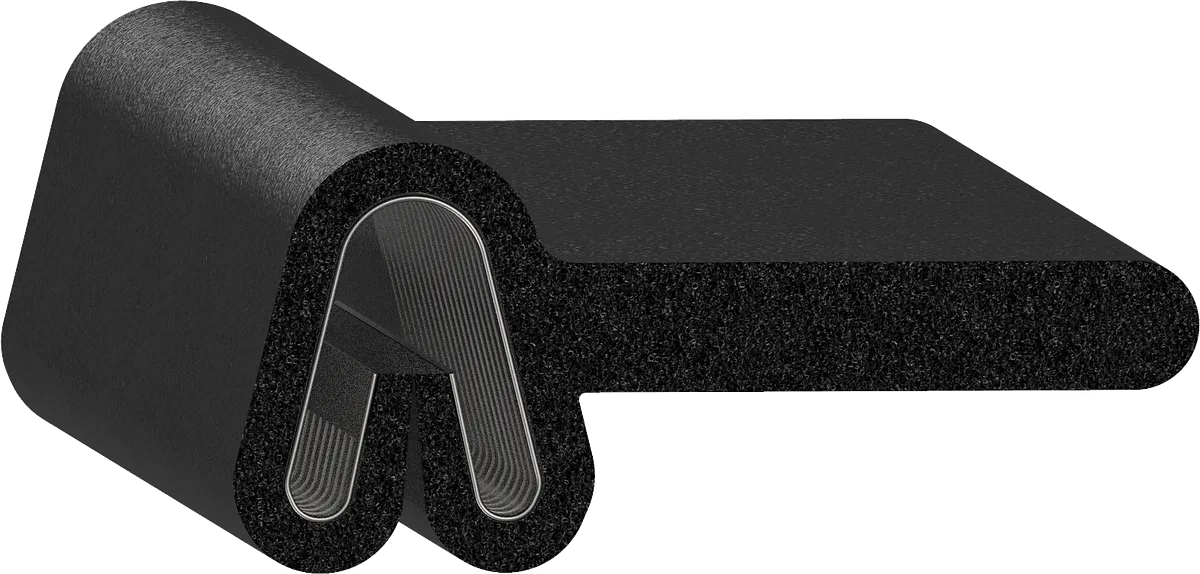

Cross-section drawing of SD-499 — Cross-section — SD-499Not to scale

Specification

As drawn.

Specification for SD-499
Width	1.460" 37.1 mm
Height	0.600" 15.2 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Core	SD-487 Spring Steel
Shape	Flap Seal
Flap	1.000" 25.4 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

5 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DU-004 1.524 × 0.600 in · Rubber FL-031 2.350 × 0.625 in · Rubber SD-496 1.300 × 0.675 in · Rubber SD-497 1.225 × 0.625 in · Rubber SD-498 2.141 × 0.650 in · Rubber
