SD-496

W × H1.300 × 0.675 in MaterialRubber

Request a quote for SD-496 → Spec sheet (PDF) Print spec sheet

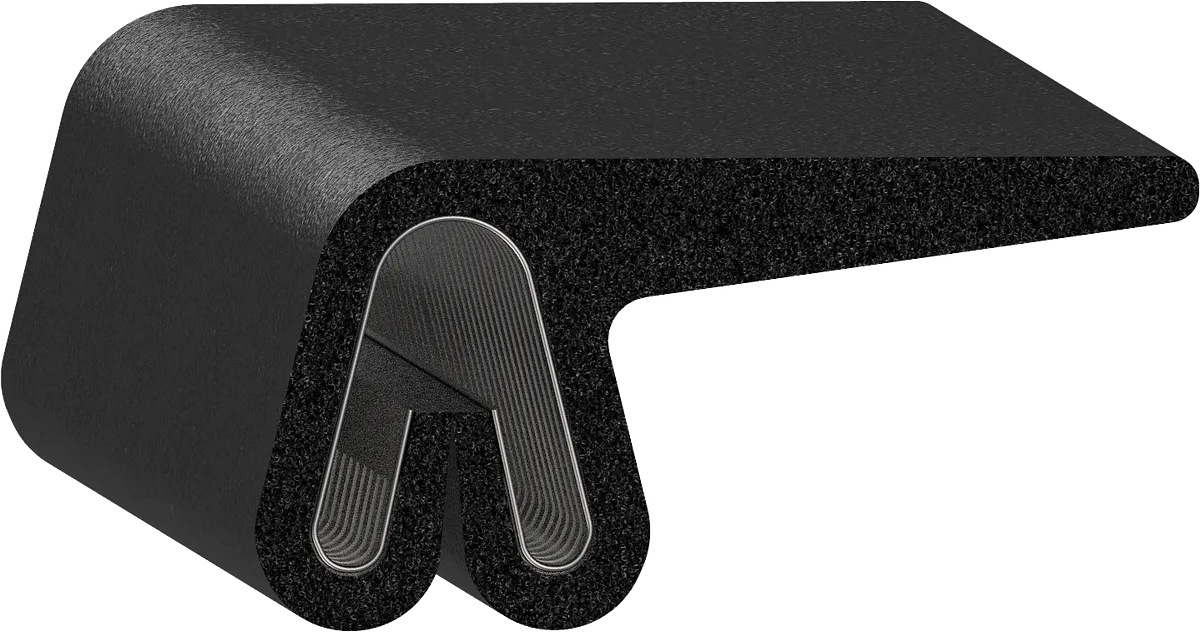

Cross-section drawing of SD-496 — Cross-section — SD-496Not to scale

Specification

As drawn.

Specification for SD-496
Width	1.300" 33.0 mm
Height	0.675" 17.1 mm
Flange	0.125" 3.2 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Push On
Core	SD-487 Spring Steel
Shape	Flap Seal
Flap	0.988" 25.1 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-497 1.225 × 0.625 in · Rubber SD-498 2.141 × 0.650 in · Rubber SD-499 1.460 × 0.600 in · Rubber
