Trim Finder

Find the trim by style, number or size.

Type a part number, a dimension or a material. Narrow the catalogue by style, size and compound — the same fields that appear on each drawing.

25
profiles matching · Download CSV
25 profiles
Cards Table
Sort
Part Width Height Material Mount Style
Pressure Sensitive Tape Remove filter Reset all
  1. Cross-section drawing of PC-130
    PC-130
    PC-130
    W × H
    0.330 × 0.500 in
    Material
    PVC
    Style
    Tape Seal
    Quote Compare
  2. Cross-section drawing of PE-010
    PE-010
    PE-010
    W × H
    0.346 × — in
    Material
    PVC
    Style
    Trim Seal
    Quote Compare
  3. Cross-section drawing of SD-203-T
    SD-203-T
    SD-203-T
    W × H
    0.375 × 0.250 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

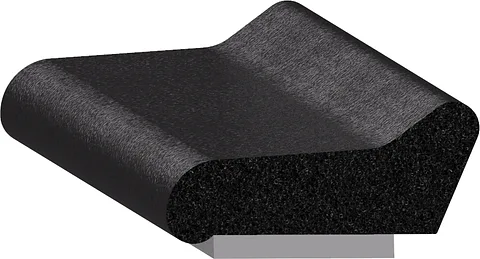

  4. Cross-section drawing of SD-208-PT
    SD-208-PT
    SD-208-PT
    W × H
    0.660 × 0.280 in
    Material
    Rubber
    Style
    Tape Seal
    Quote Compare
  5. Cross-section drawing of SD-261-PT
    SD-261-PT
    SD-261-PT
    W × H
    0.600 × 0.400 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  6. Cross-section drawing of SD-301-PT
    SD-301-PT
    SD-301-PT
    W × H
    0.750 × 0.475 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

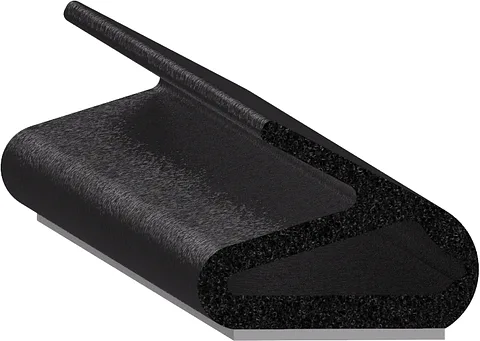

  7. Cross-section drawing of SD-322-PT
    SD-322-PT
    SD-322-PT
    W × H
    0.500 × 0.370 in
    Material
    Rubber
    Style
    Tape Seal
    Quote Compare
  8. Cross-section drawing of SD-333-PT
    SD-333-PT
    SD-333-PT
    W × H
    0.650 × 0.540 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

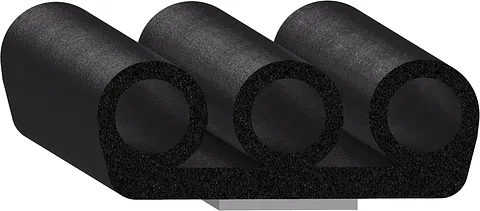

  9. Cross-section drawing of SD-412-PT
    SD-412-PT
    SD-412-PT
    W × H
    1.375 × 0.500 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

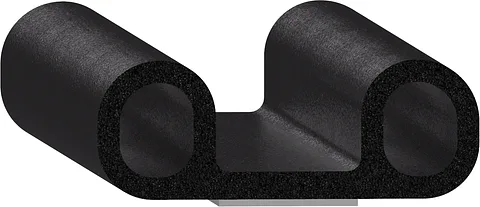

  10. Cross-section drawing of SD-413-PT
    SD-413-PT
    SD-413-PT
    W × H
    1.375 × 0.500 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  11. Cross-section drawing of SD-632-PT
    SD-632-PT
    SD-632-PT
    W × H
    0.827 × 0.709 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

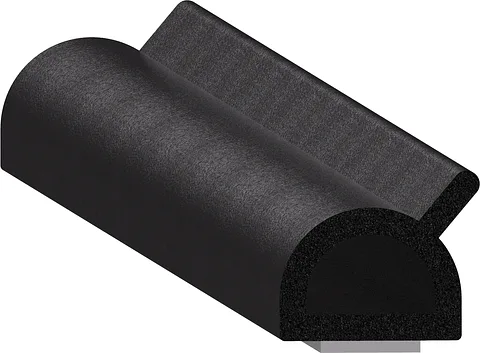

  12. Cross-section drawing of SD-801-PT
    SD-801-PT
    SD-801-PT
    W × H
    0.685 × 0.635 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

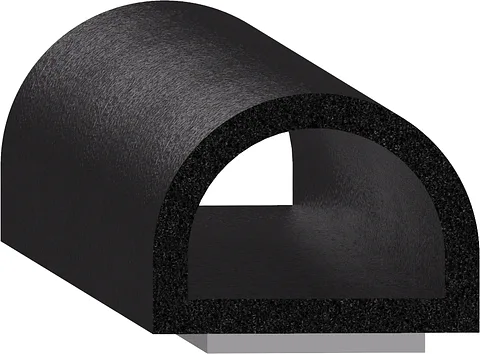

  13. Cross-section drawing of SD-803-PT
    SD-803-PT
    SD-803-PT
    W × H
    0.750 × 0.550 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

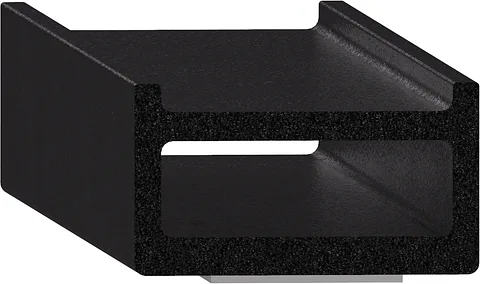

  14. Cross-section drawing of SD-810-PT
    SD-810-PT
    SD-810-PT
    W × H
    1.000 × 0.500 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

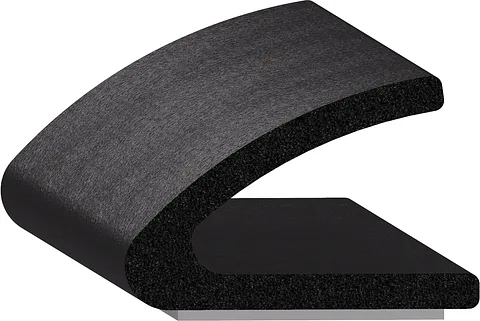

  15. Cross-section drawing of TS-038
    TS-038
    TS-038
    W × H
    1.000 × 0.650 in
    Material
    Rubber
    Style
    Tape Seal
    Quote Compare

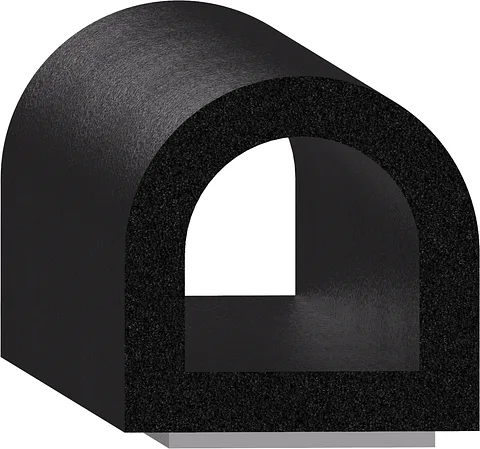

  16. Cross-section drawing of TS-066
    TS-066
    TS-066
    W × H
    1.000 × 1.000 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  17. Cross-section drawing of TS-071
    TS-071
    TS-071
    W × H
    0.610 × 0.366 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

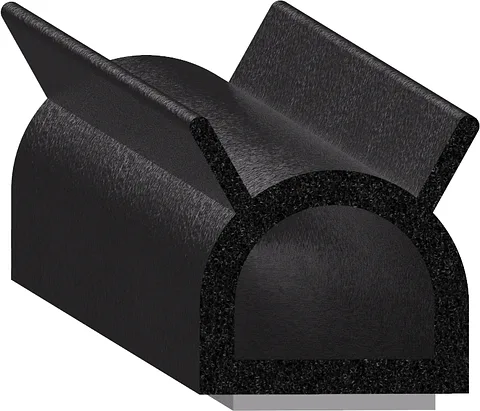

  18. Cross-section drawing of TS-077
    TS-077
    TS-077
    W × H
    0.500 × 0.515 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  19. Cross-section drawing of TS-168
    TS-168
    TS-168
    W × H
    0.422 × 0.511 in
    Material
    Rubber
    Style
    Other Extrusion
    Quote Compare

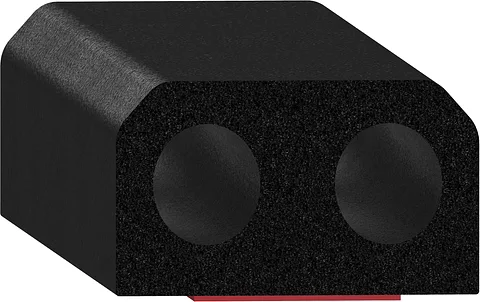

  20. Cross-section drawing of TS-190
    TS-190
    TS-190
    W × H
    1.100 × 0.575 in
    Material
    Rubber
    Style
    Tape Seal
    Quote Compare

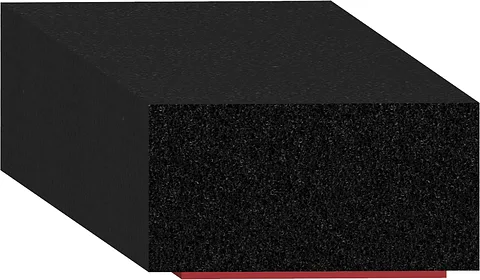

  21. Cross-section drawing of TS-191
    TS-191
    TS-191
    W × H
    0.780 × 0.350 in
    Material
    Rubber
    Style
    Tape Seal
    Quote Compare
  22. Cross-section drawing of TS-192
    TS-192
    TS-192
    W × H
    0.625 × 0.375 in
    Material
    Rubber
    Style
    Tape Seal
    Quote Compare
  23. Cross-section drawing of TS-196
    TS-196
    TS-196
    W × H
    1.875 × 0.190 in
    Material
    Rubber
    Style
    Tape Seal
    Quote Compare

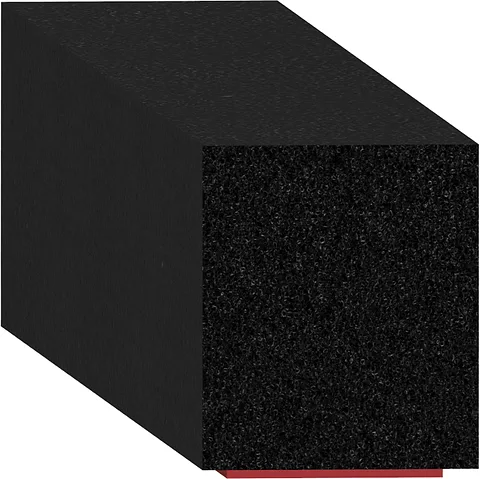

  24. Cross-section drawing of TS-198
    TS-198
    TS-198
    W × H
    0.480 × 0.480 in
    Material
    Rubber
    Style
    Other Extrusion
    Quote Compare

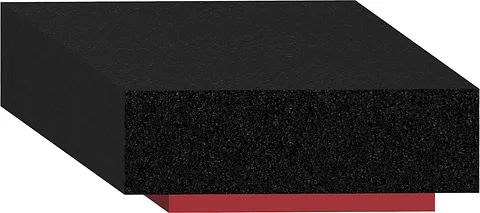

  25. Cross-section drawing of TS-201
    TS-201
    TS-201
    W × H
    1.000 × 0.250 in
    Material
    Rubber
    Style
    Tape Seal
    Quote Compare
