SD-322-PT copy

SD-322-PT

W × H0.500 × 0.370 in MaterialRubber

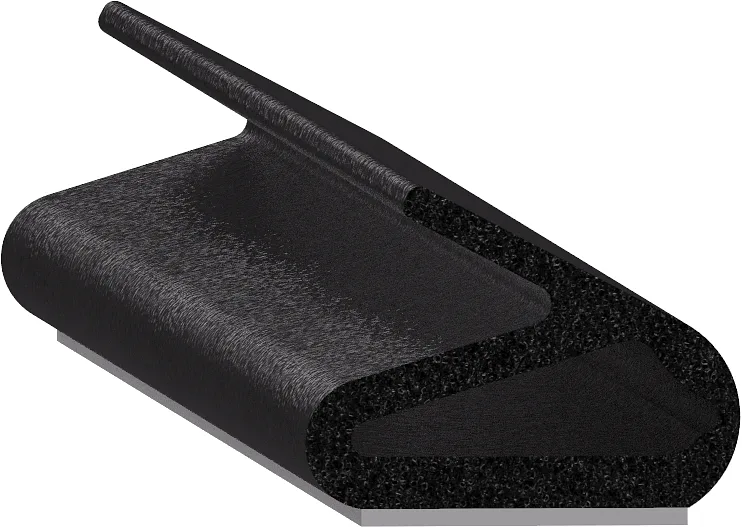

Cross-section drawing of SD-322-PT
Cross-section — SD-322-PTNot to scale
Specification

As drawn.

Specification for SD-322-PT
Width 0.500" 12.7 mm
Height 0.370" 9.4 mm
Material Rubber
Type Sponge
Durometer 2A2 (sponge grade)
Colour Black
Mount Tape
Tape Pressure Sensitive Tape

Dimensions in inches to three places, as on the drawing; millimetres computed.
