TS-077

W × H0.500 × 0.515 in MaterialRubber

Tape Seals Bulb Seals

Request a quote for TS-077 → Spec sheet (PDF) Print spec sheet

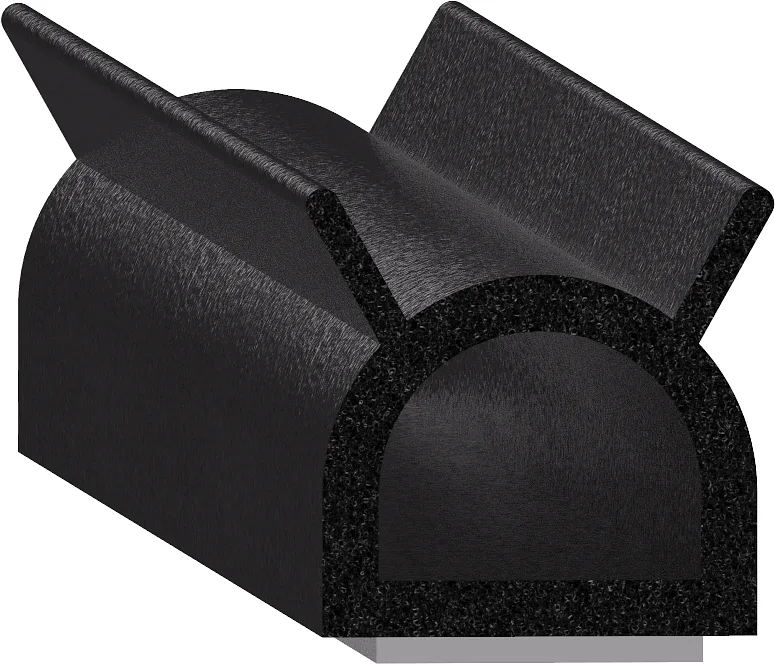

Cross-section drawing of TS-077 — Cross-section — TS-077Not to scale

Specification

As drawn.

Specification for TS-077
Width	0.500" 12.7 mm
Height	0.515" 13.1 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Tape
Bulb position	Top
Tape	Pressure Sensitive Tape
Shape	Bulb Seal and D-Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

10 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-203-ST 0.375 × 0.250 in · Rubber SD-203-T 0.375 × 0.250 in · Rubber SD-801-PT 0.685 × 0.635 in · Rubber SD-801-T 0.685 × 0.635 in · Rubber SD-802-T 0.675 × 0.565 in · Rubber SD-803-PT 0.750 × 0.550 in · Rubber SD-803-T 0.750 × 0.550 in · Rubber TS-065 0.750 × 0.563 in · Rubber TS-071 0.610 × 0.366 in · Rubber TS-133 0.750 × 0.550 in · Rubber
