SD-801-T

W × H0.685 × 0.635 in MaterialRubber

Tape Seals Bulb Seals

Request a quote for SD-801-T → Spec sheet (PDF) Print spec sheet

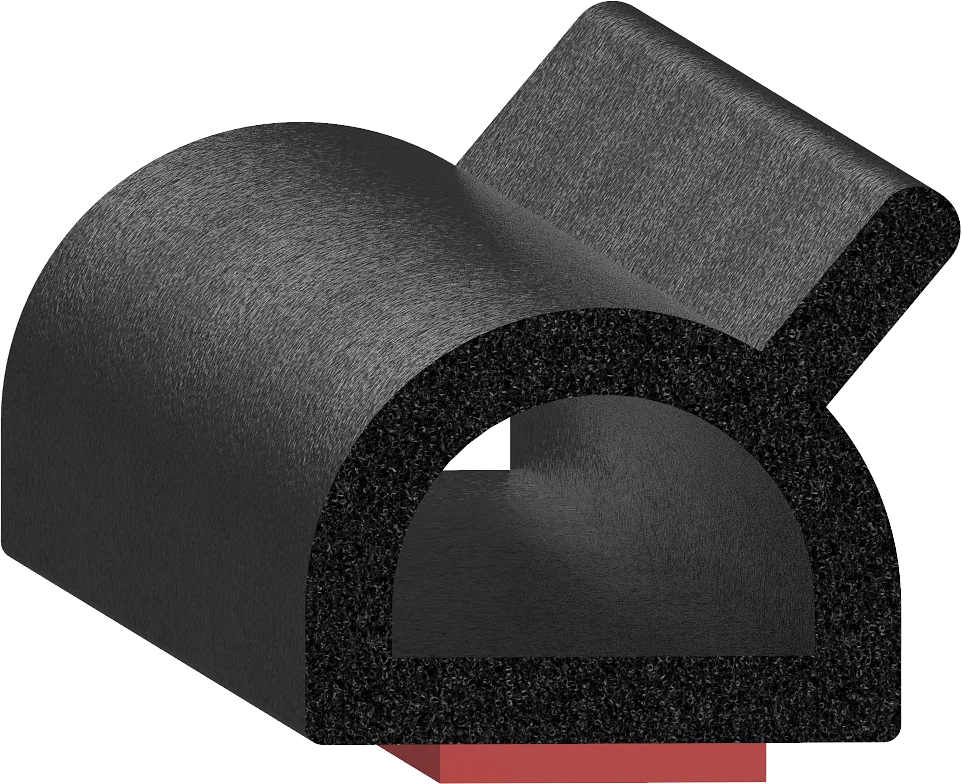

Cross-section drawing of SD-801-T — Cross-section — SD-801-TNot to scale

Specification

As drawn.

Specification for SD-801-T
Width	0.685" 17.4 mm
Height	0.635" 16.1 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Tape
Bulb position	Top
Tape	3M Heat-Activated Tape
Shape	Bulb Seal and D-Seal

Coil lengths: 100 ft · 250 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

10 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-203-ST 0.375 × 0.250 in · Rubber SD-203-T 0.375 × 0.250 in · Rubber SD-801-PT 0.685 × 0.635 in · Rubber SD-802-T 0.675 × 0.565 in · Rubber SD-803-PT 0.750 × 0.550 in · Rubber SD-803-T 0.750 × 0.550 in · Rubber TS-065 0.750 × 0.563 in · Rubber TS-071 0.610 × 0.366 in · Rubber TS-077 0.500 × 0.515 in · Rubber TS-133 0.750 × 0.550 in · Rubber
