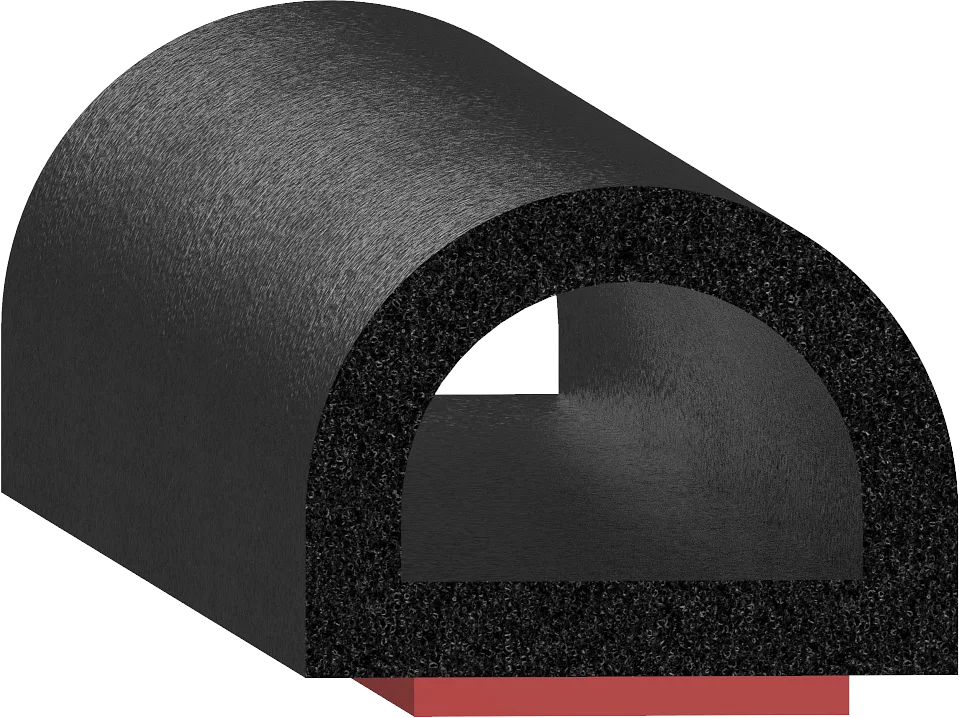

Specification
As drawn.
| Width | 0.750" 19.0 mm |
|---|---|
| Height | 0.563" 14.3 mm |
| Material | Rubber |
| Type | Sponge |
| Durometer | 2A2 (sponge grade) |
| Colour | Black |
| Mount | Tape |
| Bulb position | Top |
| Tape | 3M Heat-Activated Tape |
| Shape | Bulb Seal and D-Seal |
Dimensions in inches to three places, as on the drawing; millimetres computed.
10 interchangeable parts
Substitutes from the catalogue.
Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.
SD-203-ST
0.375 × 0.250 in · Rubber
SD-203-T
0.375 × 0.250 in · Rubber
SD-801-PT
0.685 × 0.635 in · Rubber
SD-801-T
0.685 × 0.635 in · Rubber
SD-802-T
0.675 × 0.565 in · Rubber
SD-803-PT
0.750 × 0.550 in · Rubber
SD-803-T
0.750 × 0.550 in · Rubber
TS-071
0.610 × 0.366 in · Rubber
TS-077
0.500 × 0.515 in · Rubber
TS-133
0.750 × 0.550 in · Rubber
Need it in volume, or to a change?
