Trim Finder

Find the trim by style, number or size.

Type a part number, a dimension or a material. Narrow the catalogue by style, size and compound — the same fields that appear on each drawing.

9
profiles matching · Download CSV
9 profiles
Cards Table
Sort
Part Width Height Material Mount Style
Pedestal Seal Remove filter Reset all
  1. Cross-section drawing of DD-020
    DD-020
    DD-020
    W × H
    0.450 × 0.510 in
    Material
    Rubber
    Style
    Other Extrusion
    Quote Compare

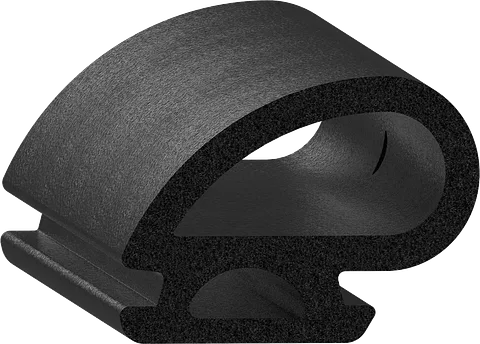

  2. Cross-section drawing of RE-031
    RE-031
    RE-031
    W × H
    1.050 × 0.748 in
    Material
    Rubber
    Style
    Other Extrusion
    Quote Compare
  3. Cross-section drawing of RE-061
    RE-061
    RE-061
    W × H
    0.500 × 0.370 in
    Material
    Rubber
    Style
    —
    Quote Compare
  4. Cross-section drawing of RE-113
    RE-113
    RE-113
    W × H
    0.720 × 0.875 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

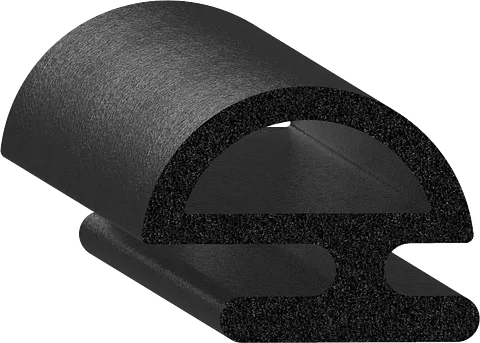

  5. Cross-section drawing of SD-102
    SD-102
    SD-102
    W × H
    0.825 × 0.500 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  6. Cross-section drawing of SD-116-T
    SD-116-T
    SD-116-T
    W × H
    0.625 × 0.675 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

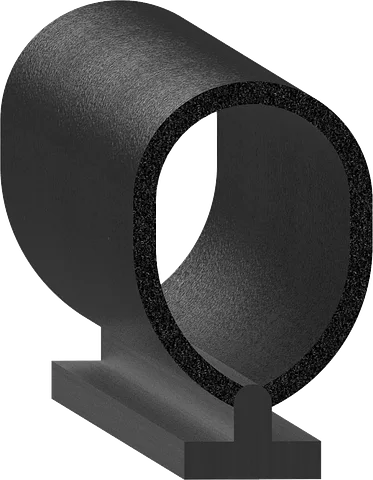

  7. Cross-section drawing of SD-12404
    SD-12404
    SD-12404
    W × H
    0.630 × 1.000 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

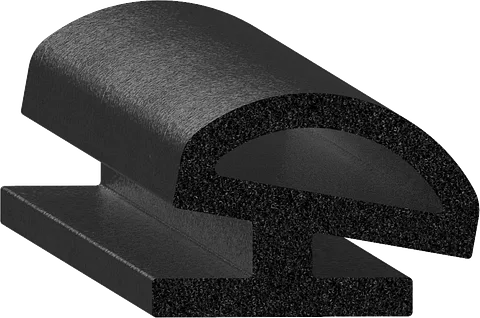

  8. Cross-section drawing of SD-550
    SD-550
    SD-550
    W × H
    0.750 × 0.515 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  9. Cross-section drawing of SD-633
    SD-633
    SD-633
    W × H
    0.748 × 0.790 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
