SD-102

W × H0.825 × 0.500 in MaterialRubber

Bulb Seals

Request a quote for SD-102 → Spec sheet (PDF) Print spec sheet

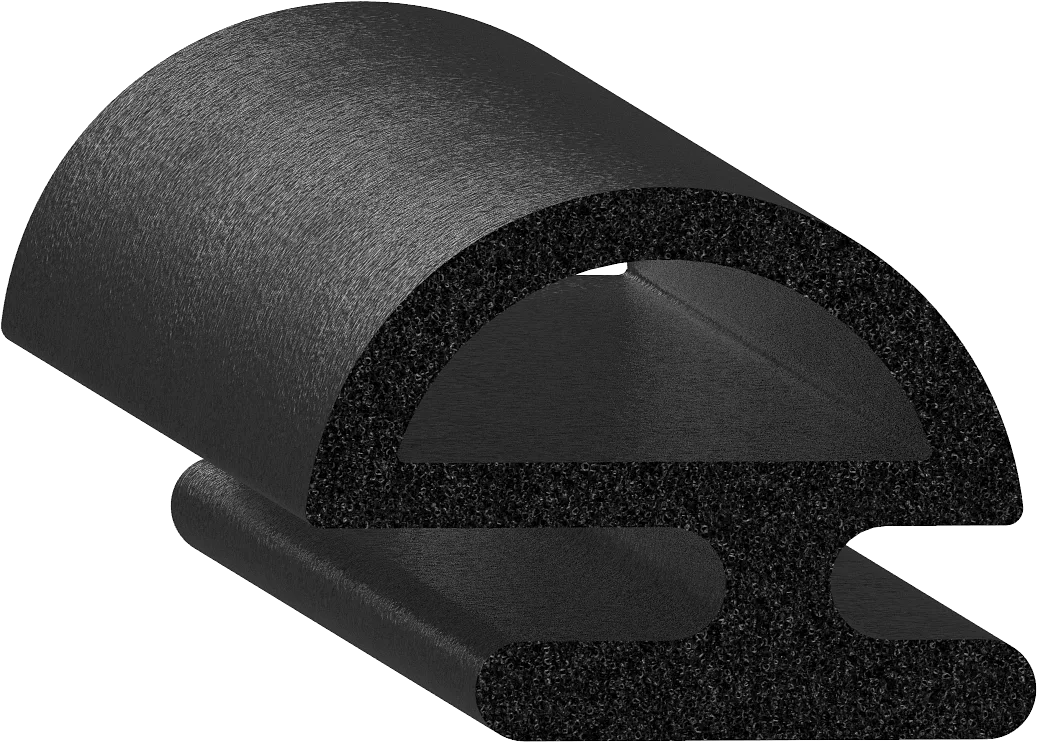

Cross-section drawing of SD-102 — Cross-section — SD-102Not to scale

Specification

As drawn.

Specification for SD-102
Width	0.825" 21.0 mm
Height	0.500" 12.7 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Pedestal
Bulb position	Top
Shape	Bulb Seal, D-Seal, and Pedestal Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DD-020 0.450 × 0.510 in · Rubber RE-031 1.050 × 0.748 in · Rubber SD-633 0.748 × 0.790 in · Rubber
