Seal catalogue · Bulb Seals · Part

SD-633 copy

SD-633

W × H0.748 × 0.790 in MaterialRubber

Bulb Seals

Request a quote for SD-633 → Spec sheet (PDF) Print spec sheet

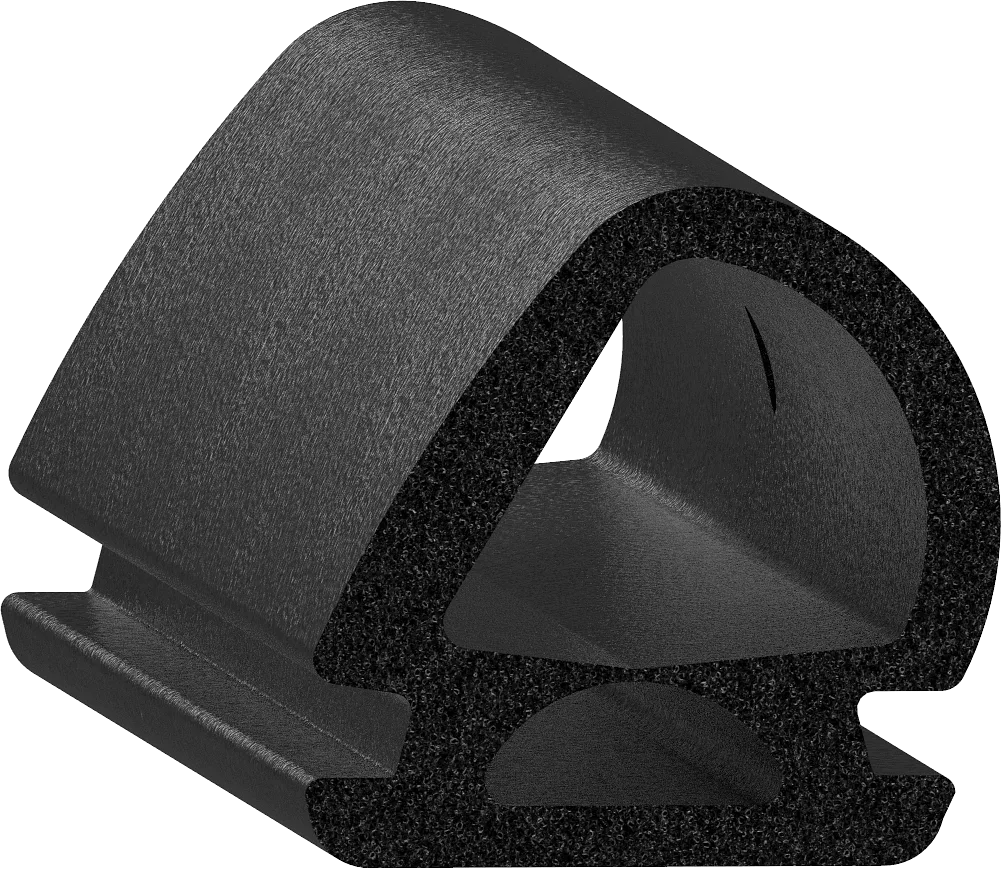

Cross-section drawing of SD-633 — Cross-section — SD-633Not to scale

Specification

As drawn.

Specification for SD-633
Width	0.748" 19.0 mm
Height	0.790" 20.1 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Pedestal
Shape	Pedestal Seal and Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

DD-020 0.450 × 0.510 in · Rubber RE-031 1.050 × 0.748 in · Rubber SD-102 0.825 × 0.500 in · Rubber
