Trim Finder

Find the trim by style, number or size.

Type a part number, a dimension or a material. Narrow the catalogue by style, size and compound — the same fields that appear on each drawing.

16
profiles matching · Download CSV
16 profiles
Cards Table
Sort
Part Width Height Material Mount Style
P-Seal Remove filter Reset all
  1. Cross-section drawing of BL-058
    BL-058
    BL-058
    W × H
    1.807 × 1.200 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  2. Cross-section drawing of ED-5327-T
    ED-5327-T
    ED-5327-T
    W × H
    2.625 × 0.800 in
    Material
    Rubber
    Style
    Flap Seal
    Quote Compare

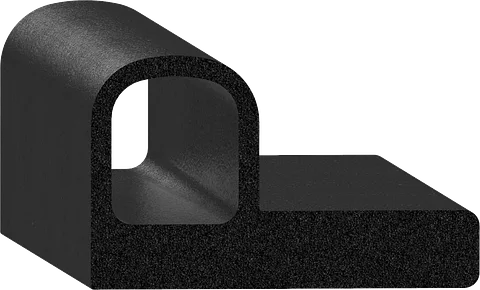

  3. Cross-section drawing of ED-5336
    ED-5336
    ED-5336
    W × H
    1.500 × 0.900 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  4. Cross-section drawing of ED-5336-T
    ED-5336-T
    ED-5336-T
    W × H
    1.500 × 0.900 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  5. Cross-section drawing of ED-5337-T
    ED-5337-T
    ED-5337-T
    W × H
    3.250 × 0.880 in
    Material
    Rubber
    Style
    Flap Seal
    Quote Compare
  6. Cross-section drawing of SD-112-T
    SD-112-T
    SD-112-T
    W × H
    1.000 × 0.437 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

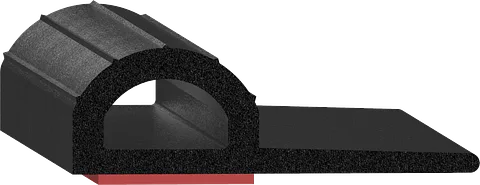

  7. Cross-section drawing of SD-268-T
    SD-268-T
    SD-268-T
    W × H
    1.950 × 0.625 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

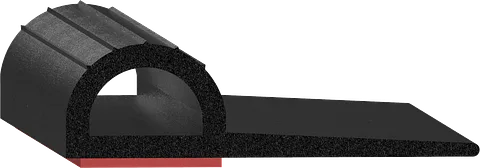

  8. Cross-section drawing of SD-269-T
    SD-269-T
    SD-269-T
    W × H
    2.200 × 0.625 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  9. Cross-section drawing of SD-269-T-W
    SD-269-T-W
    SD-269-T-W
    W × H
    2.200 × 0.625 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

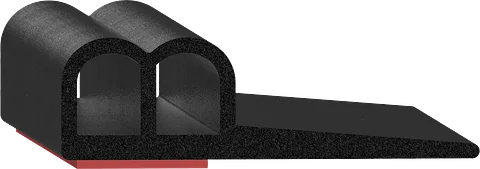

  10. Cross-section drawing of SD-271-T
    SD-271-T
    SD-271-T
    W × H
    2.400 × 0.700 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  11. Cross-section drawing of SD-272-T
    SD-272-T
    SD-272-T
    W × H
    1.250 × 0.625 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  12. Cross-section drawing of TR-504-T-WT-2-X-Tape
    TR-504-T-WT-2-X-Tape
    TR-504-T-WT 2 X Tape
    W × H
    1.200 × 1.200 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  13. Cross-section drawing of TR-506-T
    TR-506-T
    TR-506-T
    W × H
    1.350 × 1.725 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  14. Cross-section drawing of TS-002
    TS-002
    TS-002
    W × H
    2.125 × 0.875 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare

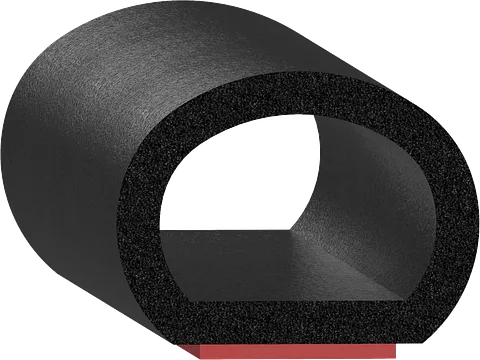

  15. Cross-section drawing of TS-034
    TS-034
    TS-034
    W × H
    1.100 × 0.820 in
    Material
    Rubber
    Style
    Bulb Seal
    Quote Compare
  16. Cross-section drawing of Uni-Seal
    Uni-Seal
    Uni-Seal
    W × H
    2.600 × 0.850 in
    Material
    Rubber
    Style
    Slide-Out Seal
    Quote Compare
