Seal catalogue · Push On Rubber Seals · Part

SD-271-T copy

SD-271-T

W × H2.400 × 0.700 in MaterialRubber

Push On Rubber Seals Tape Seals Bulb Seals

Request a quote for SD-271-T → Spec sheet (PDF) Print spec sheet

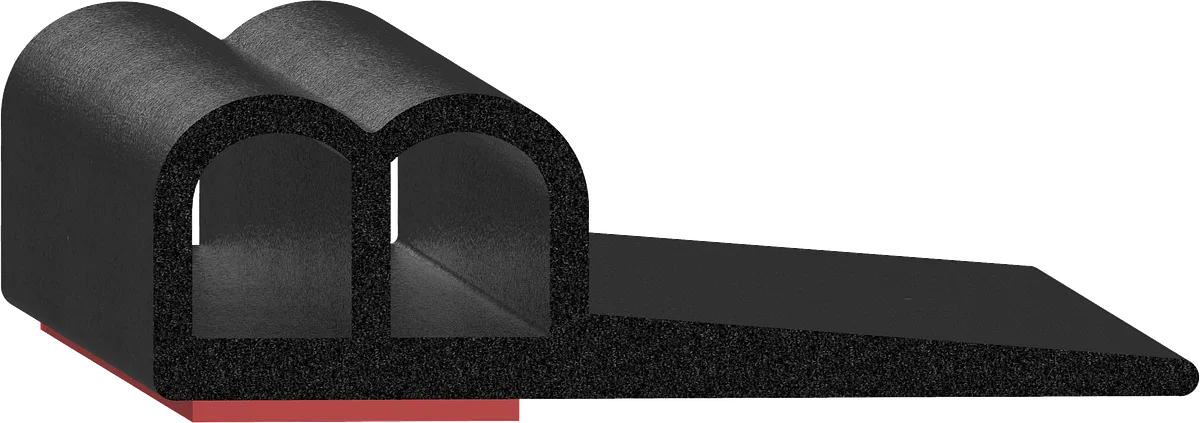

Cross-section drawing of SD-271-T — Cross-section — SD-271-TNot to scale

Specification

As drawn.

Specification for SD-271-T
Width	2.400" 61.0 mm
Height	0.700" 17.8 mm
Material	Rubber
Type	Sponge
Durometer	2A2 (sponge grade)
Colour	Black
Mount	Tape
Tape	3M Heat-Activated Tape
Shape	Bulb Seal, P-Seal, and Flap Seal
Flap	1.400" 35.6 mm

Dimensions in inches to three places, as on the drawing; millimetres computed.

8 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

ED-5327-T 2.625 × 0.800 in · Rubber ED-5336-T 1.500 × 0.900 in · Rubber ED-5337-T 3.250 × 0.880 in · Rubber SD-268-T 1.950 × 0.625 in · Rubber SD-269-T 2.200 × 0.625 in · Rubber SD-269-T-W 2.200 × 0.625 in · Rubber SD-272-T 1.250 × 0.625 in · Rubber TS-002 2.125 × 0.875 in · Rubber
