ED-5336

W × H1.500 × 0.900 in MaterialRubber

Bulb Seals

Request a quote for ED-5336 → Spec sheet (PDF) Print spec sheet

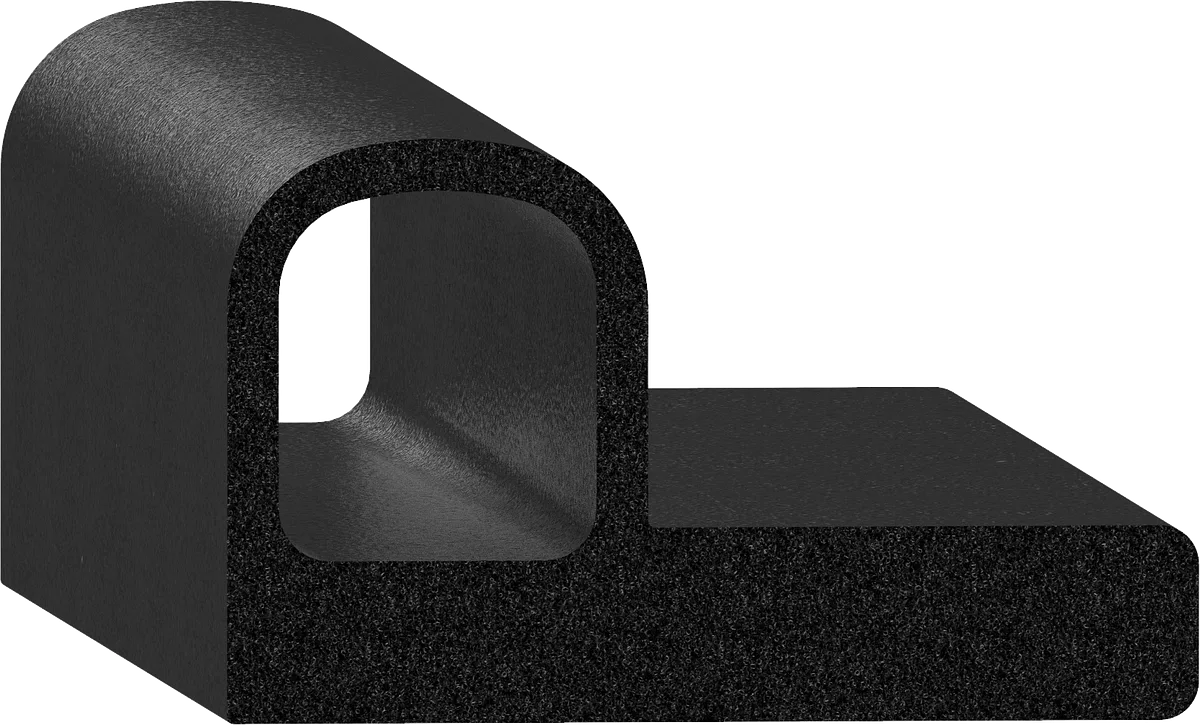

Cross-section drawing of ED-5336 — Cross-section — ED-5336Not to scale

Specification

As drawn.

Specification for ED-5336
Width	1.500" 38.1 mm
Height	0.900" 22.9 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Industries	Recreational Vehicles
Shape	P-Seal and Bulb Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

6 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

BL-023 1.525 × 0.475 in · Rubber BL-058 1.807 × 1.200 in · Rubber ED-5336-T 1.500 × 0.900 in · Rubber ED-5337-T 3.250 × 0.880 in · Rubber SD-268-T 1.950 × 0.625 in · Rubber SD-269-T 2.200 × 0.625 in · Rubber
