Seal catalogue · Tape Seals · Part

SD-213-T copy

SD-213-T

W × H0.900 × 1.000 in MaterialRubber

Tape Seals Bulb Seals

Request a quote for SD-213-T → Spec sheet (PDF) Print spec sheet

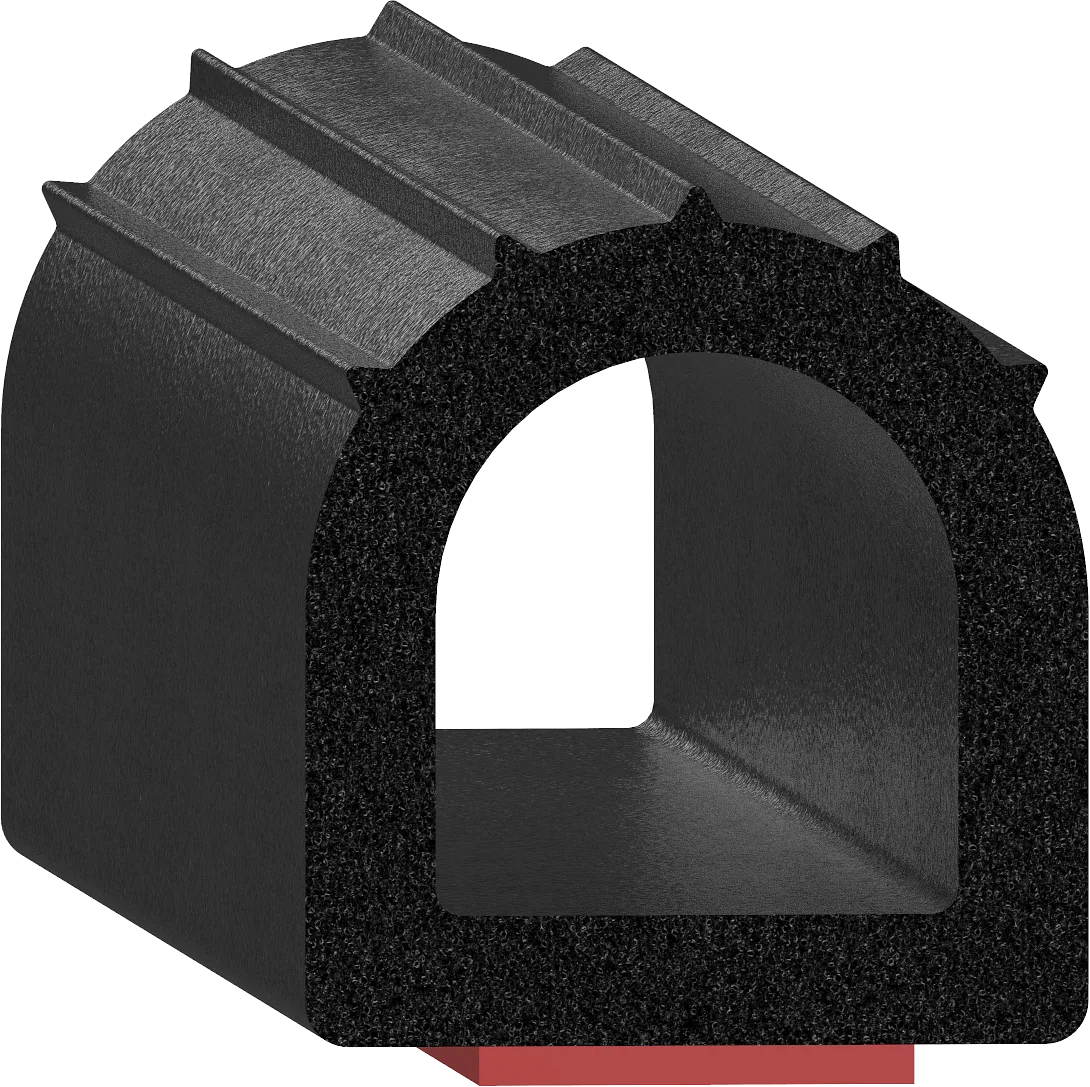

Cross-section drawing of SD-213-T — Cross-section — SD-213-TNot to scale

Specification

As drawn.

Specification for SD-213-T
Width	0.900" 22.9 mm
Height	1.000" 25.4 mm
Material	Rubber
Type	Sponge
Durometer	2A4 (sponge grade)
Colour	Black
Mount	Tape
Bulb position	Top
Tape	3M Heat-Activated Tape
Industries	Recreational Vehicles
Shape	Bulb Seal and D-Seal

Coil lengths: 100 ft · 200 ft

Dimensions in inches to three places, as on the drawing; millimetres computed.

5 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-210-T 0.580 × 0.700 in · Rubber SD-212-T 0.700 × 0.600 in · Rubber SD-2133-T 0.900 × 1.250 in · Rubber SD-313-T 0.750 × 0.750 in · Rubber TS-066 1.000 × 1.000 in · Rubber
