Seal catalogue · Tape Seals · Part

SD-212-T copy

SD-212-T

W × H0.700 × 0.600 in MaterialRubber

Tape Seals Bulb Seals

Request a quote for SD-212-T → Spec sheet (PDF) Print spec sheet

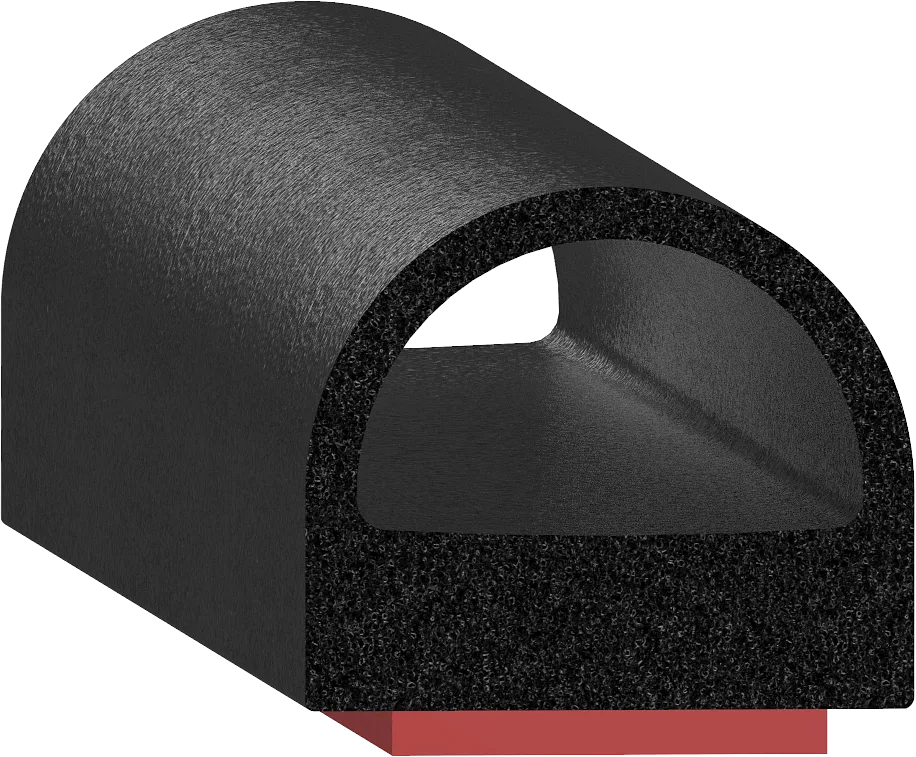

Cross-section drawing of SD-212-T — Cross-section — SD-212-TNot to scale

Specification

As drawn.

Specification for SD-212-T
Width	0.700" 17.8 mm
Height	0.600" 15.2 mm
Material	Rubber
Type	Sponge
Durometer	2A3 (sponge grade)
Colour	Black
Mount	Tape
Bulb position	Top
Tape	3M Heat-Activated Tape
Industries	Marine
Shape	Bulb Seal and D-Seal

Dimensions in inches to three places, as on the drawing; millimetres computed.

3 interchangeable parts

Substitutes from the catalogue.

Profiles that substitute for this one, from our own interchange records. Have a competitor's number? Search it in the seal catalogue for the closest equivalent.

SD-210-T 0.580 × 0.700 in · Rubber SD-213-T 0.900 × 1.000 in · Rubber TS-066 1.000 × 1.000 in · Rubber
